Appendix B

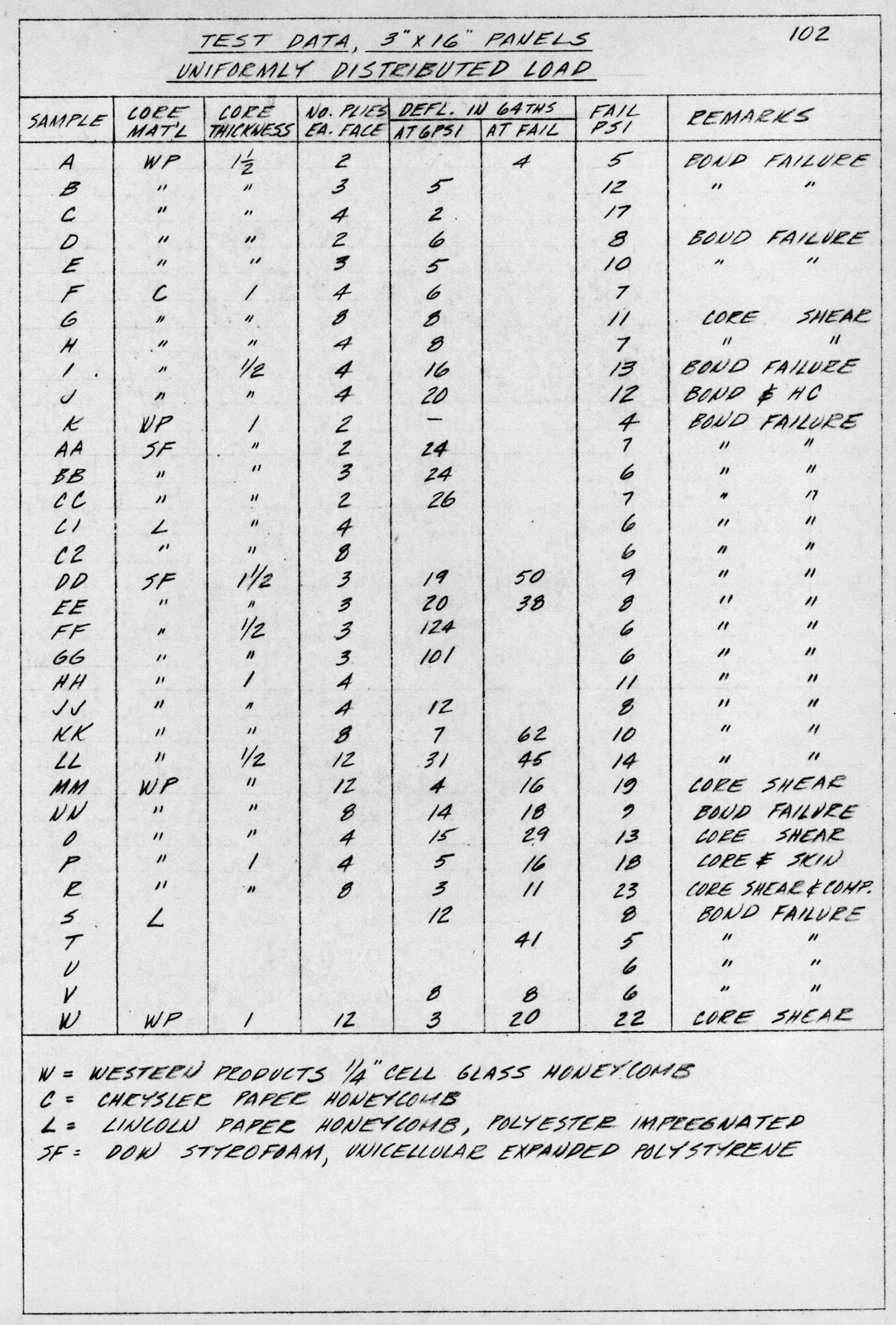

Test Data 3" x 16" panels Uniformly Distributed Load

Original page: 102

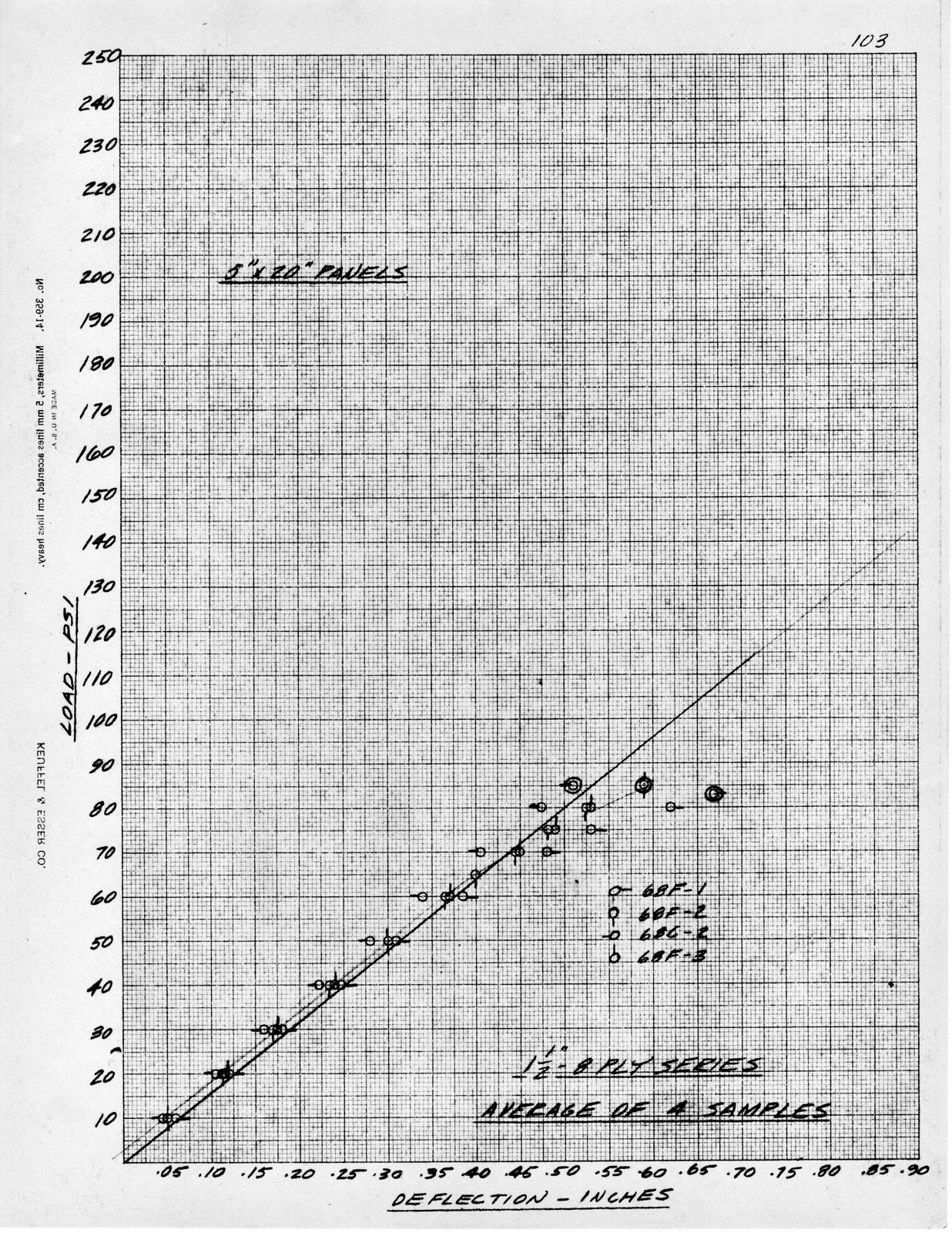

5" x 20" panels 1 1/2" 8 Ply Series Average of 4 Samples

Original page: 103

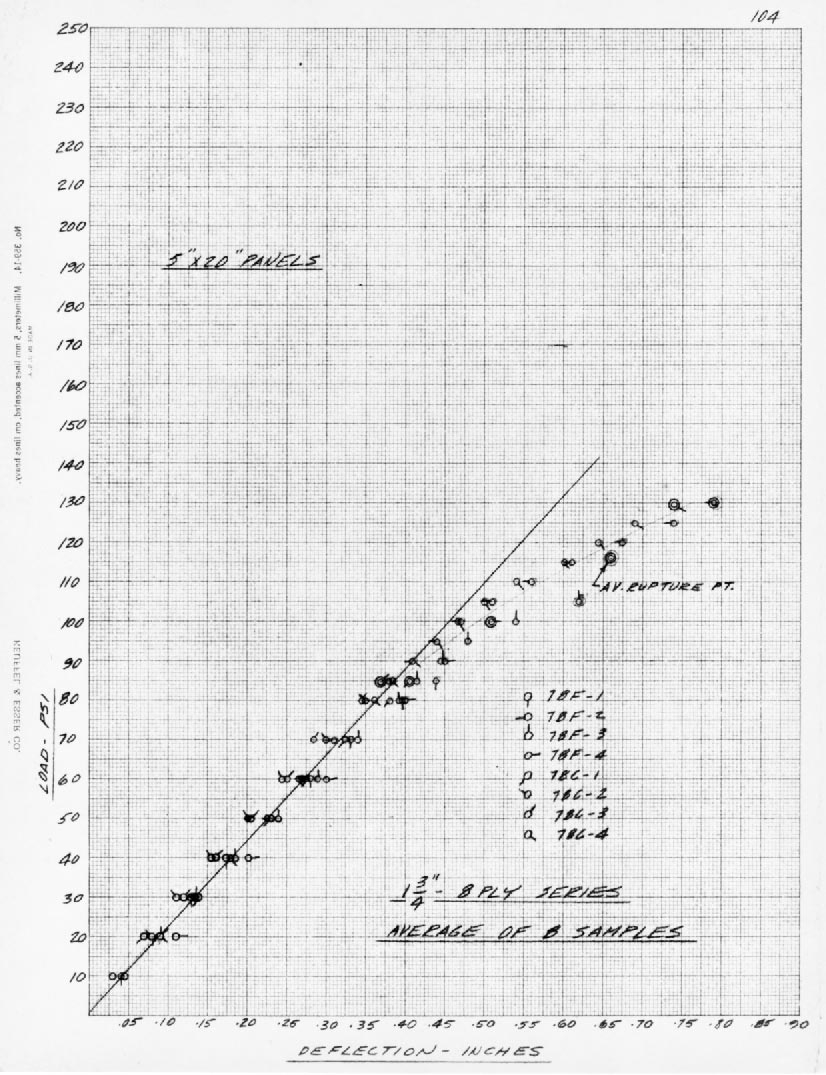

5" x 20" panels 1 3/4" 8 Ply Series Average of 8 Samples

Original page: 104

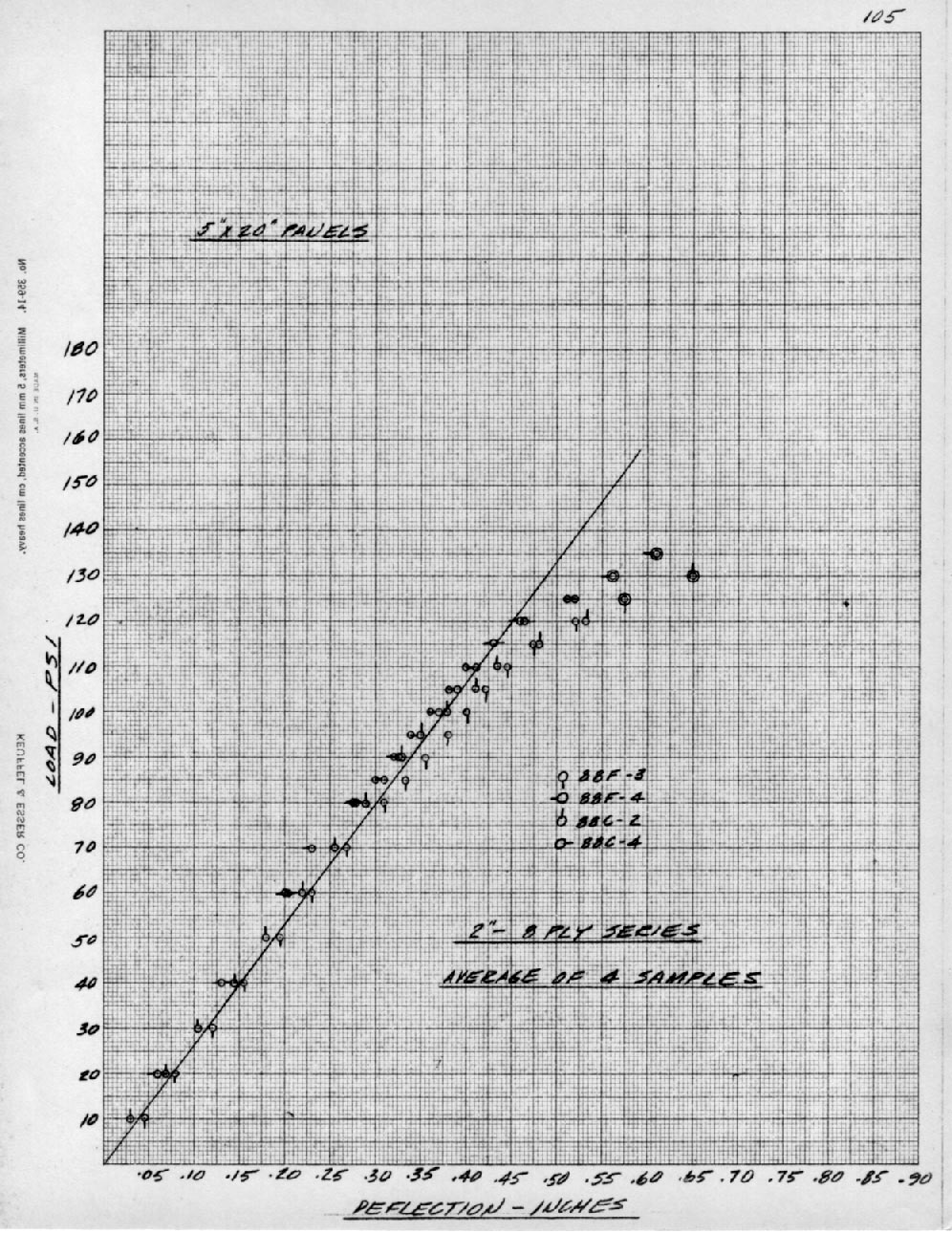

5" x 20" panels 2" 8 Ply Series Average of 4 Samples

Original page: 105

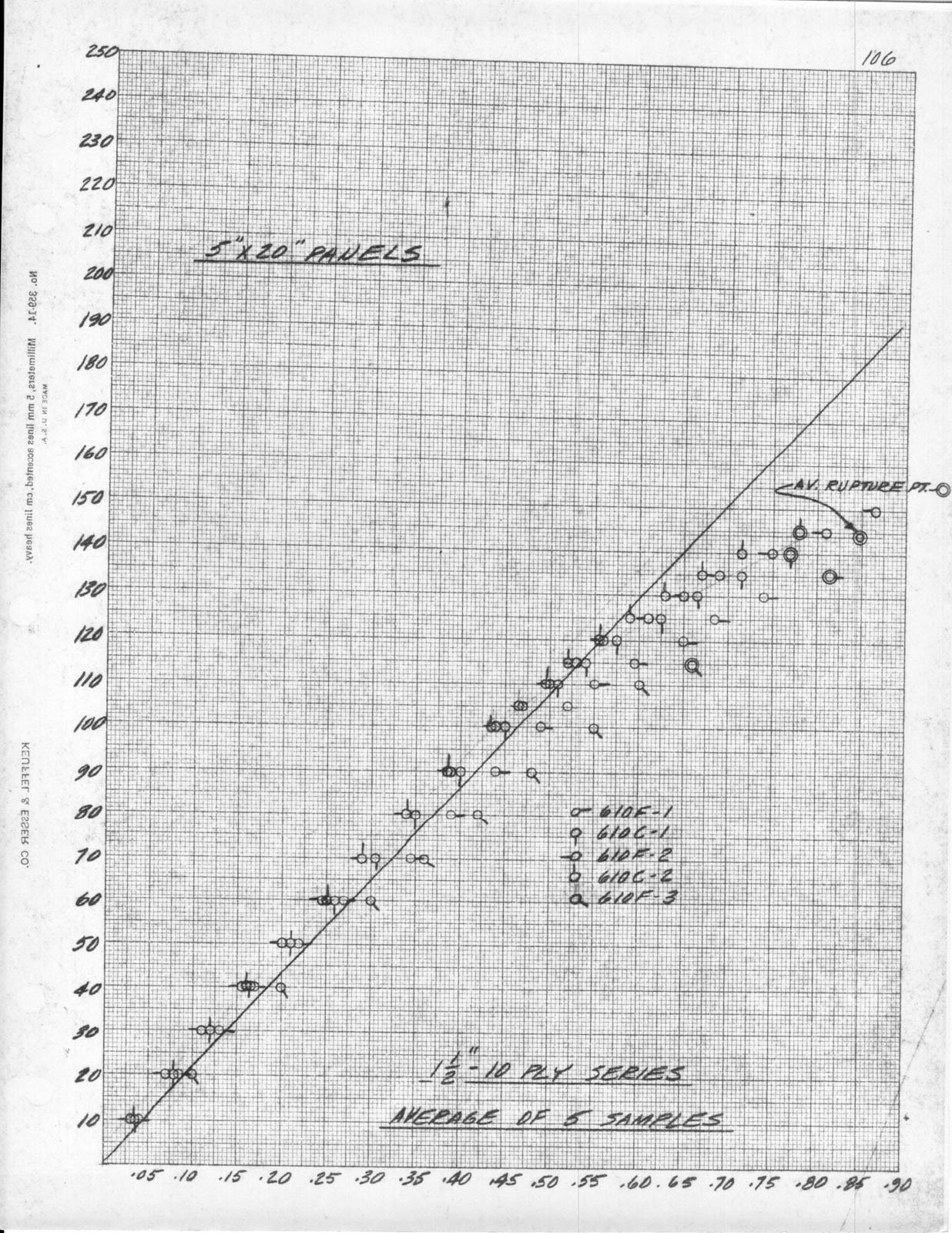

1 1/2" 10 Ply Series Average of 5 Samples

Original page: 106

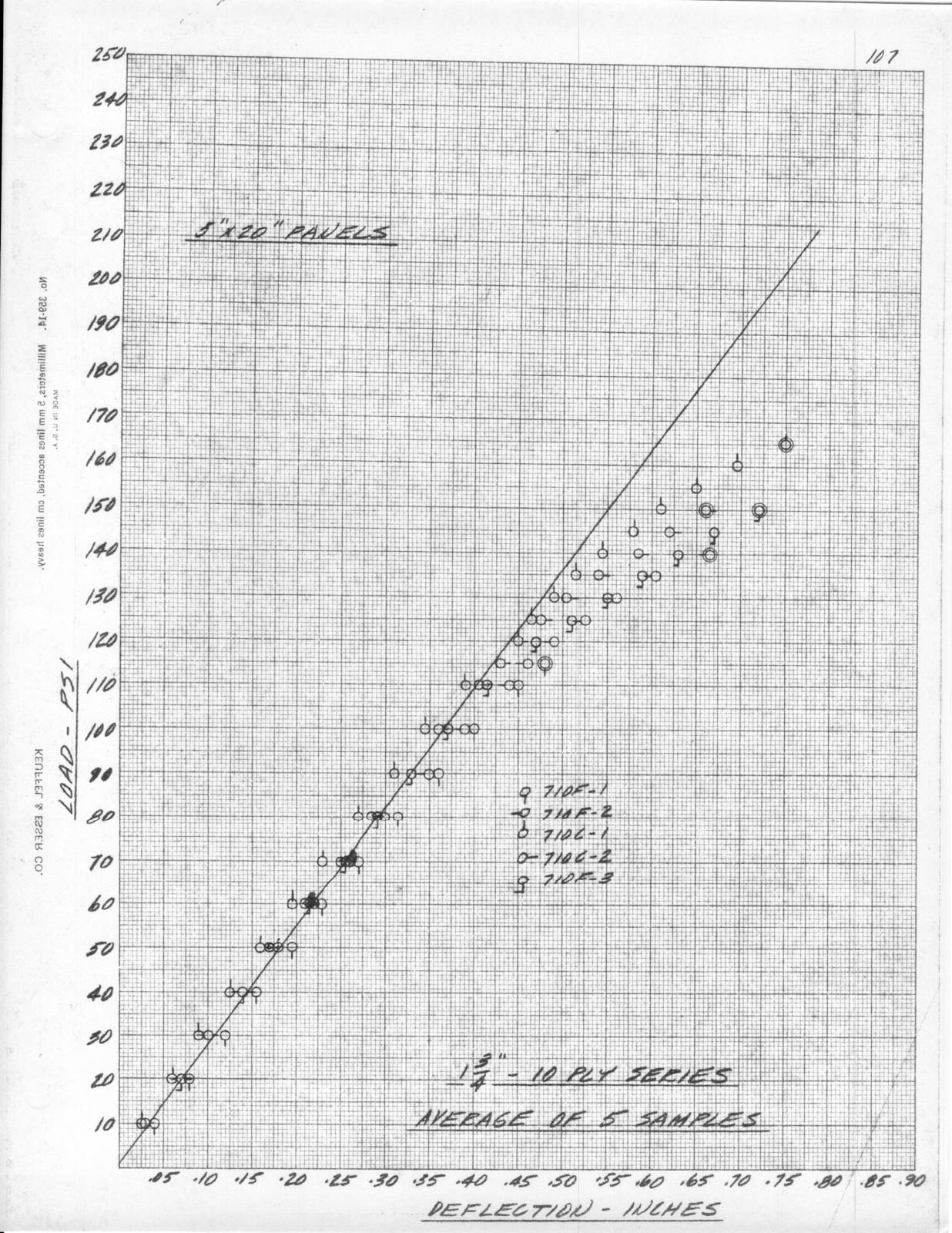

1 3/4" 10 Ply Series Average of 5 Samples

Original page: 107

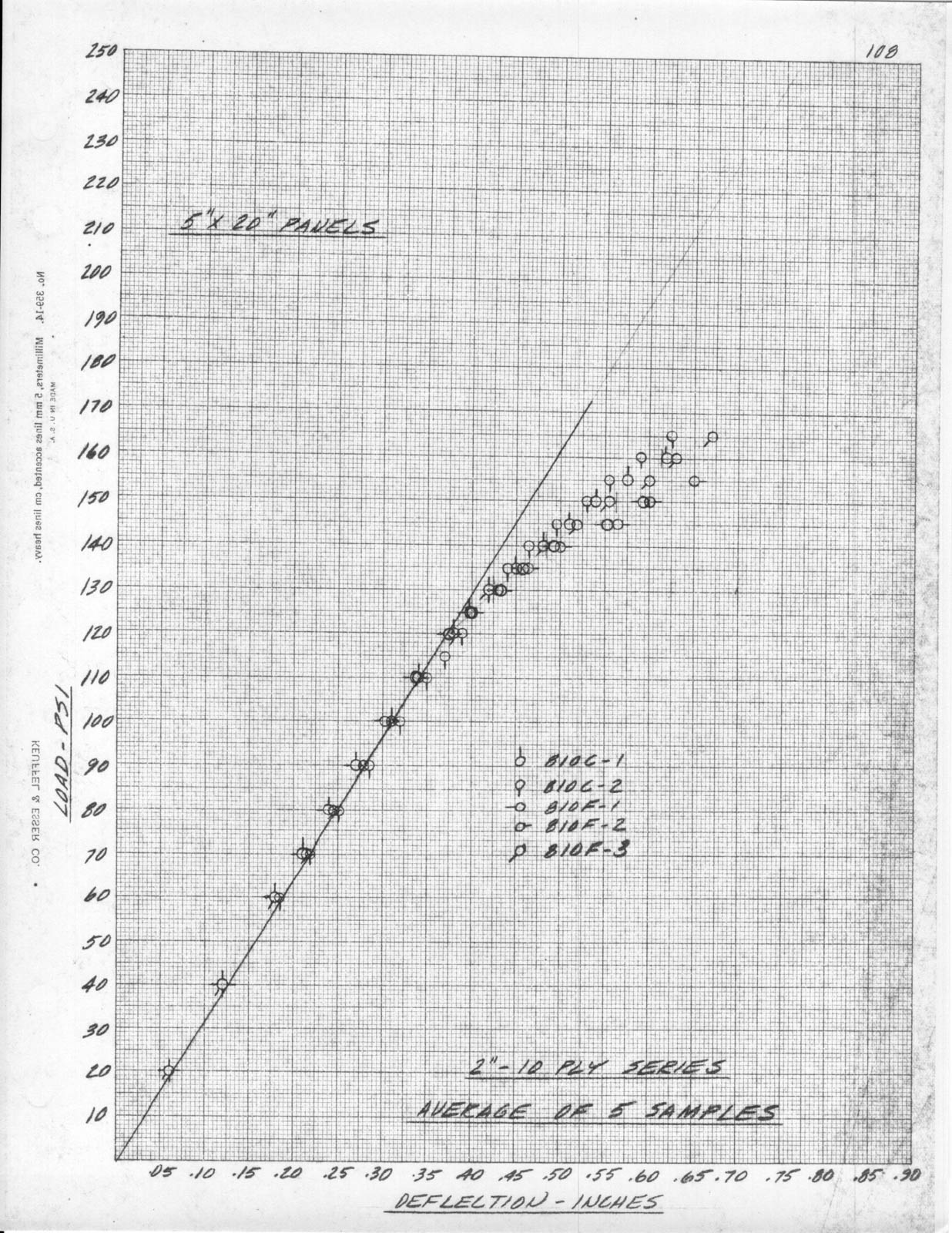

2" 10 Ply Series Average of 5 Samples

Original page: 108

1 1/2" 12 Ply Series Average of 4 Samples

Original page: 109

1 3/4" 12 Ply Series Average of 4 Samples

Original page: 110

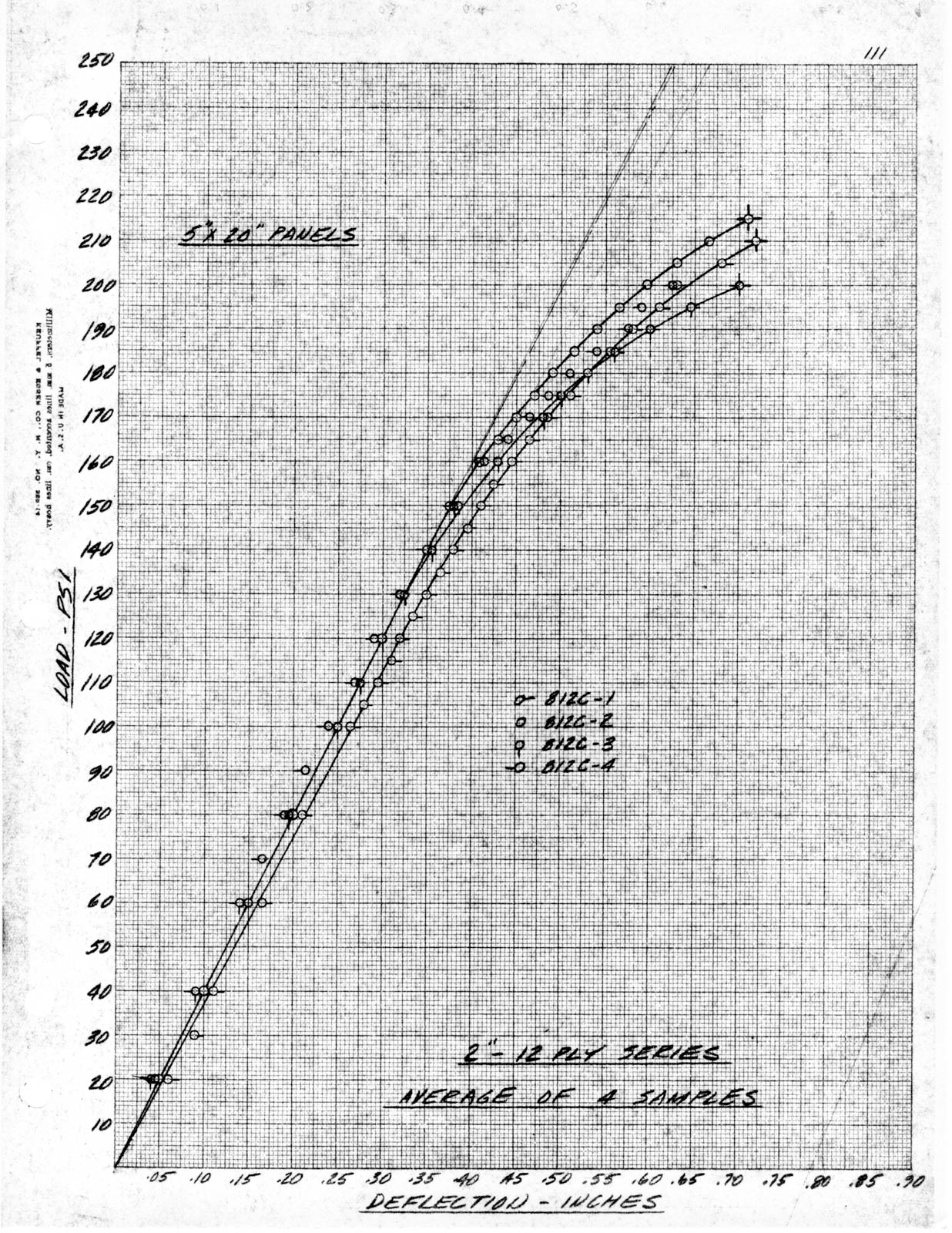

2" 12 Ply Series Average of 4 Samples

Original page: 111

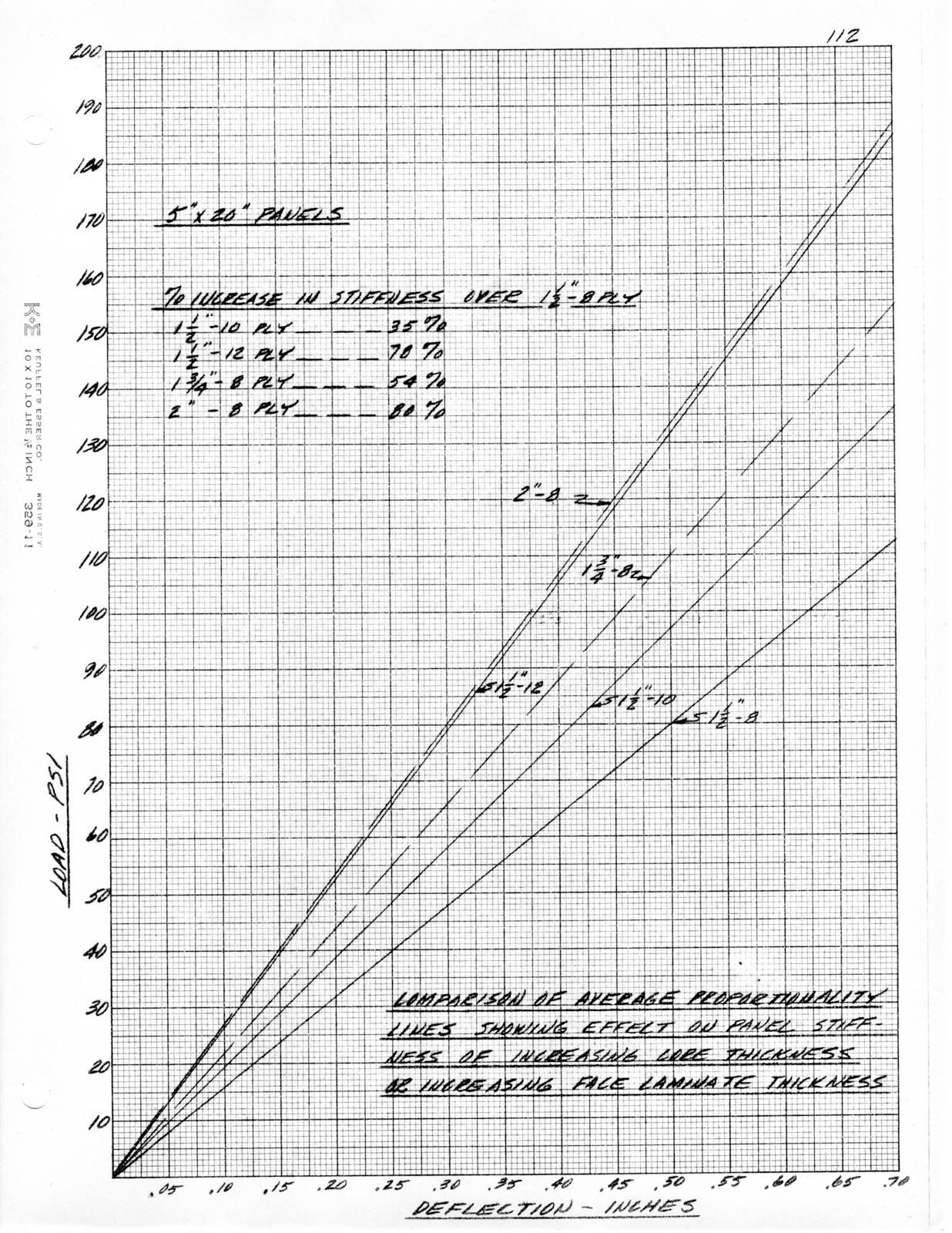

Comparison of Average Proportionality Lines Showing Effect on Panel Stiffness of Increasing Core Thickness

Original page: 112

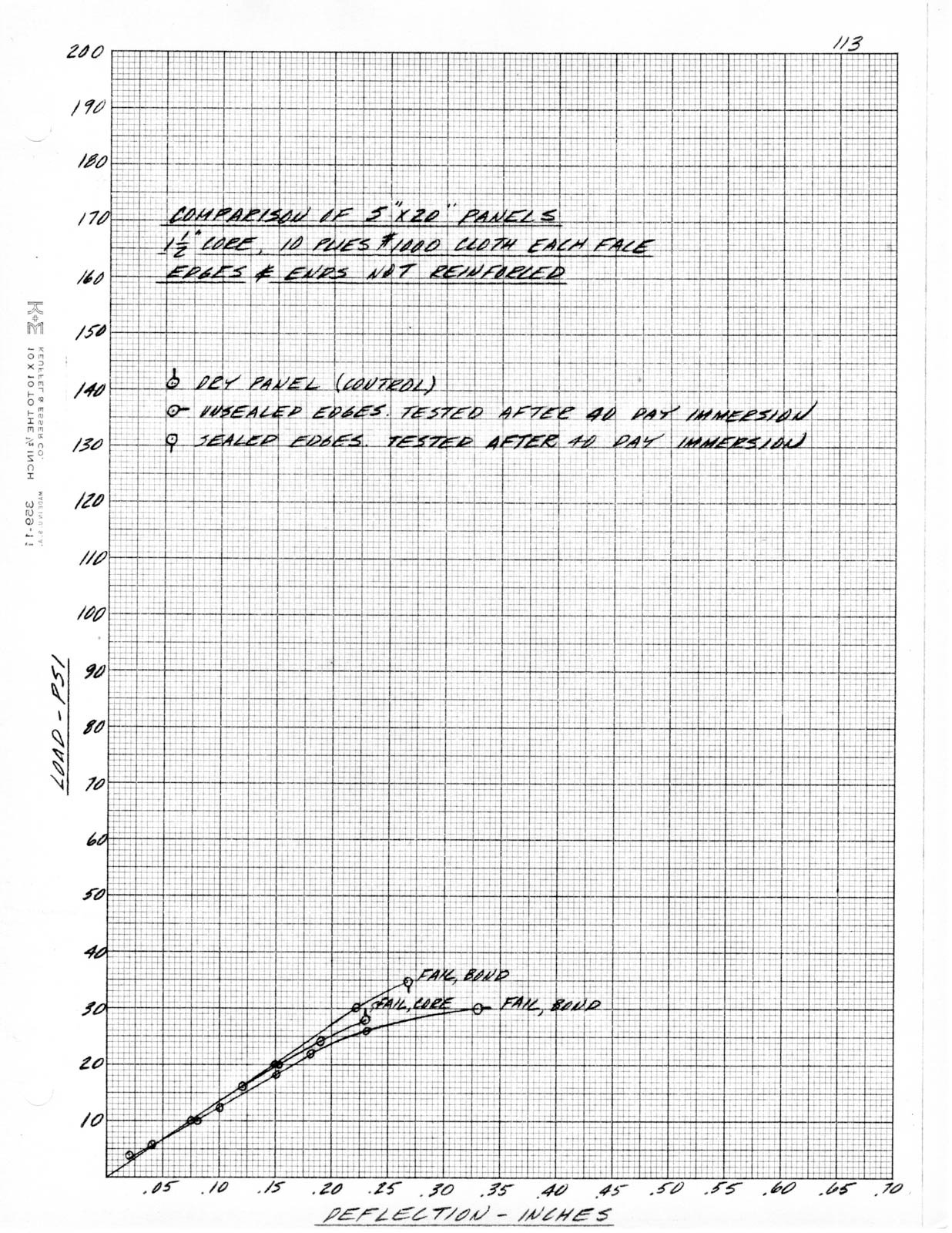

Comparison of 5"x 20" Panels

Original page: 113

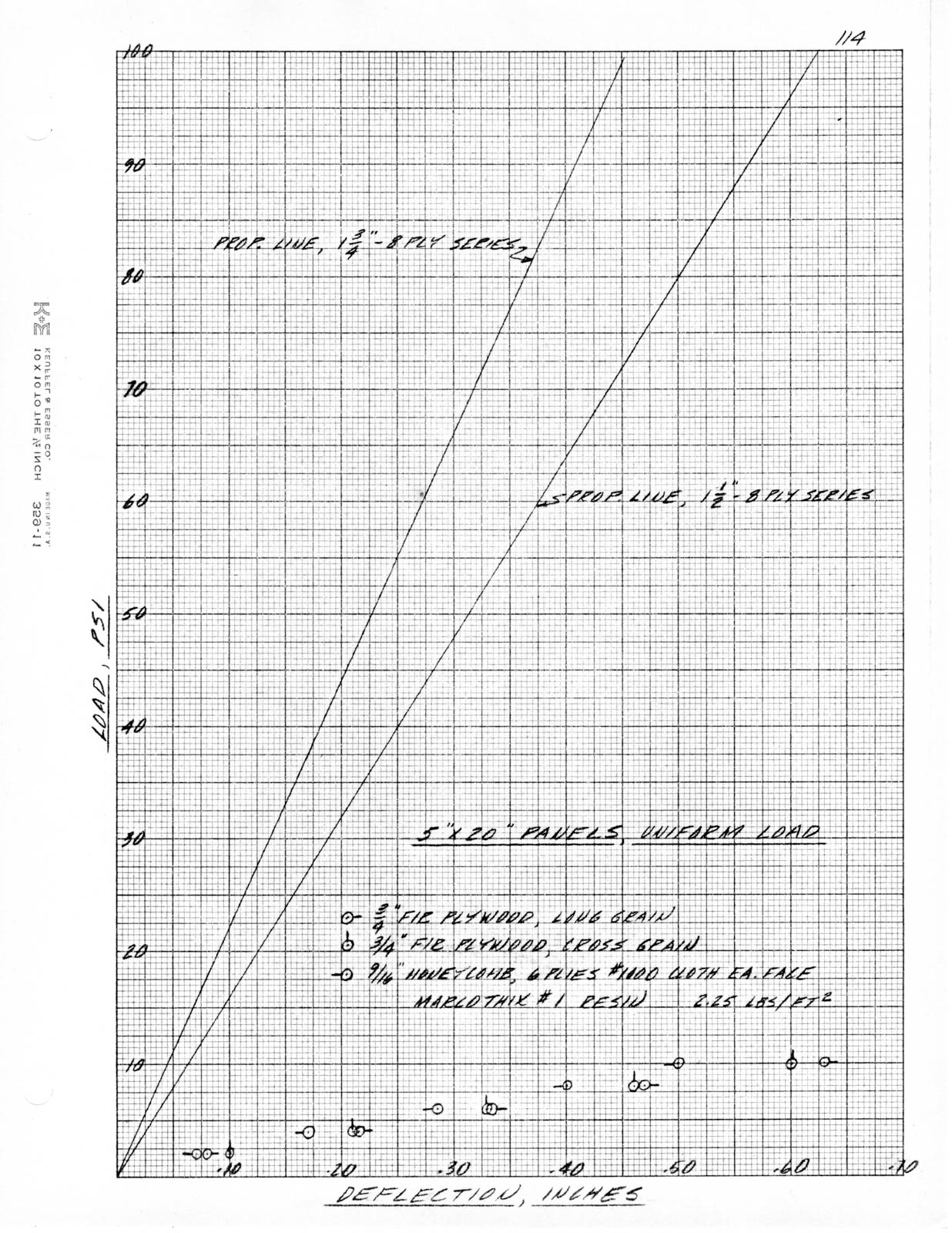

5" x 20" Panels, Uniform Load

Original page: 114

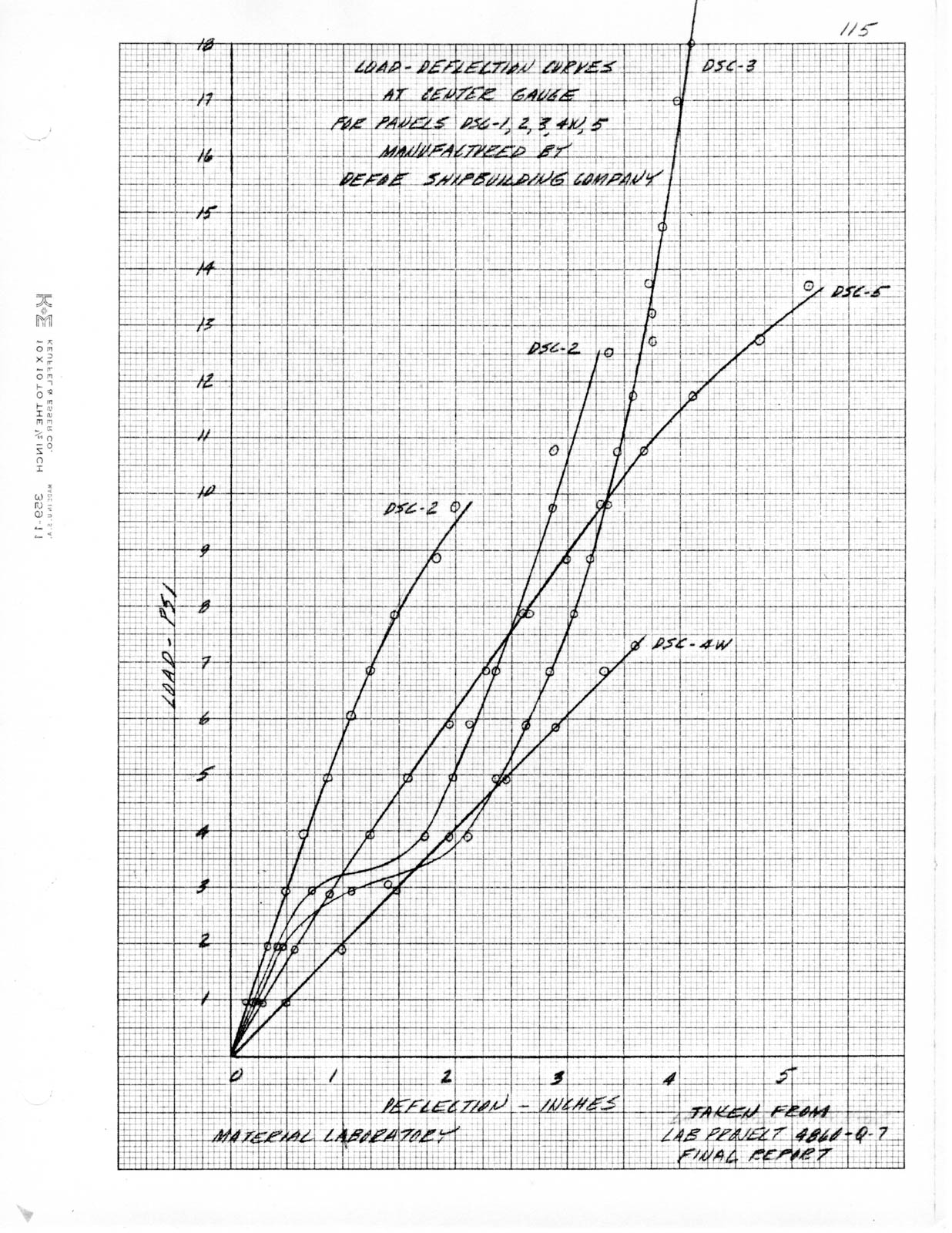

Load-Deflection Curves at Center Guage

Original page: 115

Test Data - 9x60" Panels 6/8/53

Original page: 116

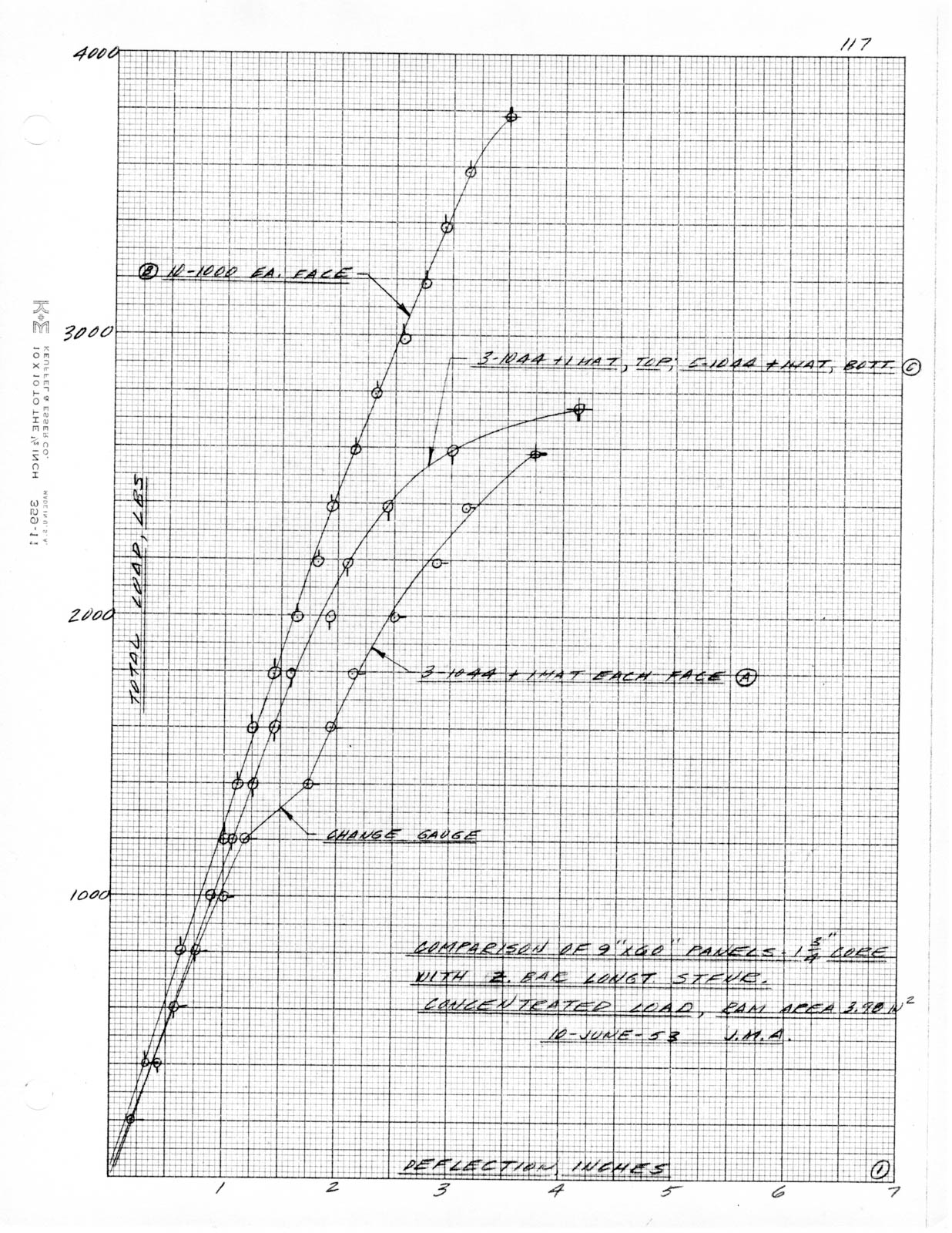

Comparison of 9"x60" Panels 1 3/4 Core with Z Bar Longt Stfnr

Original page: 117

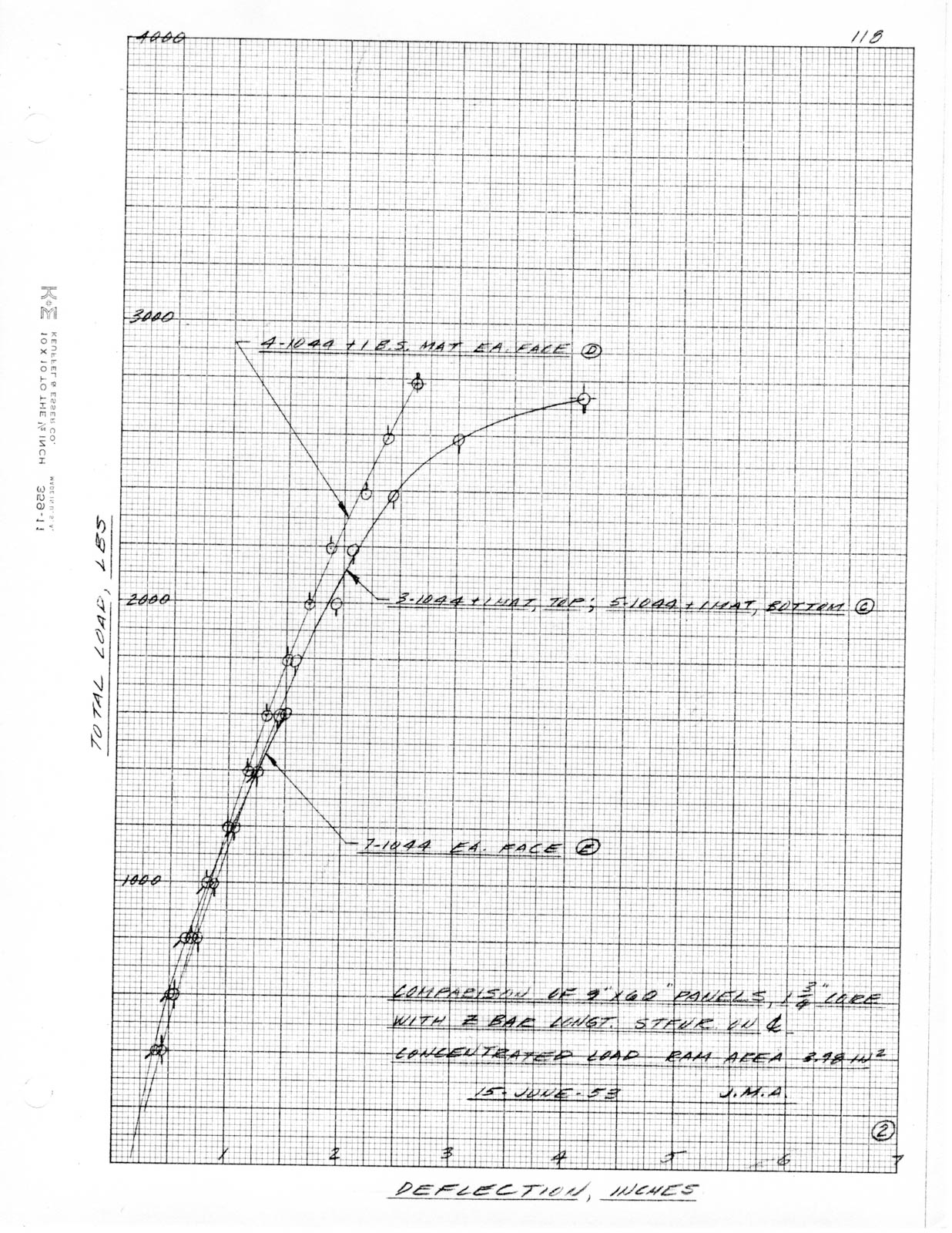

Comparison of 9"x60" Panels 1 3/4 Core with Z Bar Longt Stfnr 15-June-53

Original page: 118

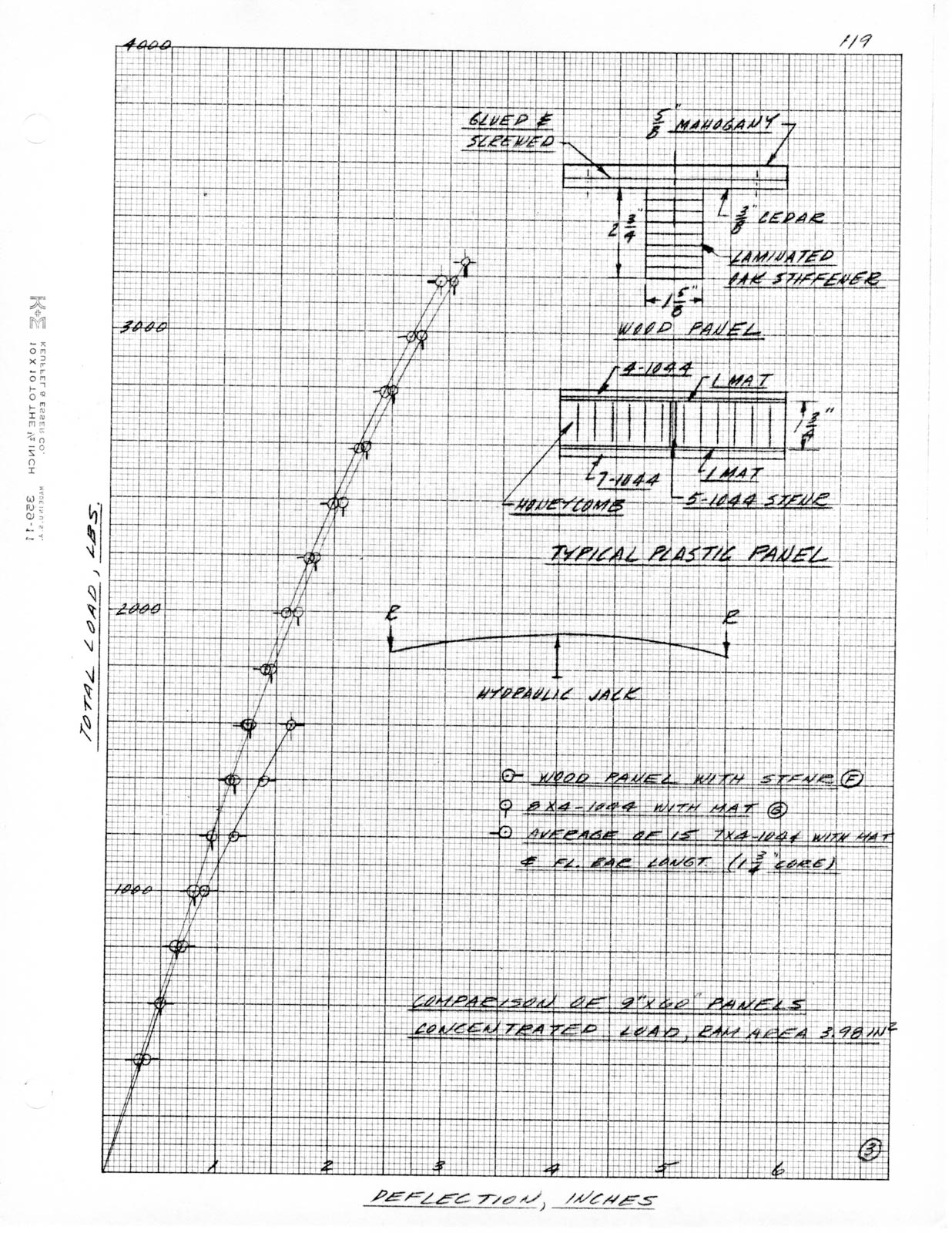

Comparison of 9"x60" Panels Concentrated Loan, Ram Area 3.968in²

Original page: 119

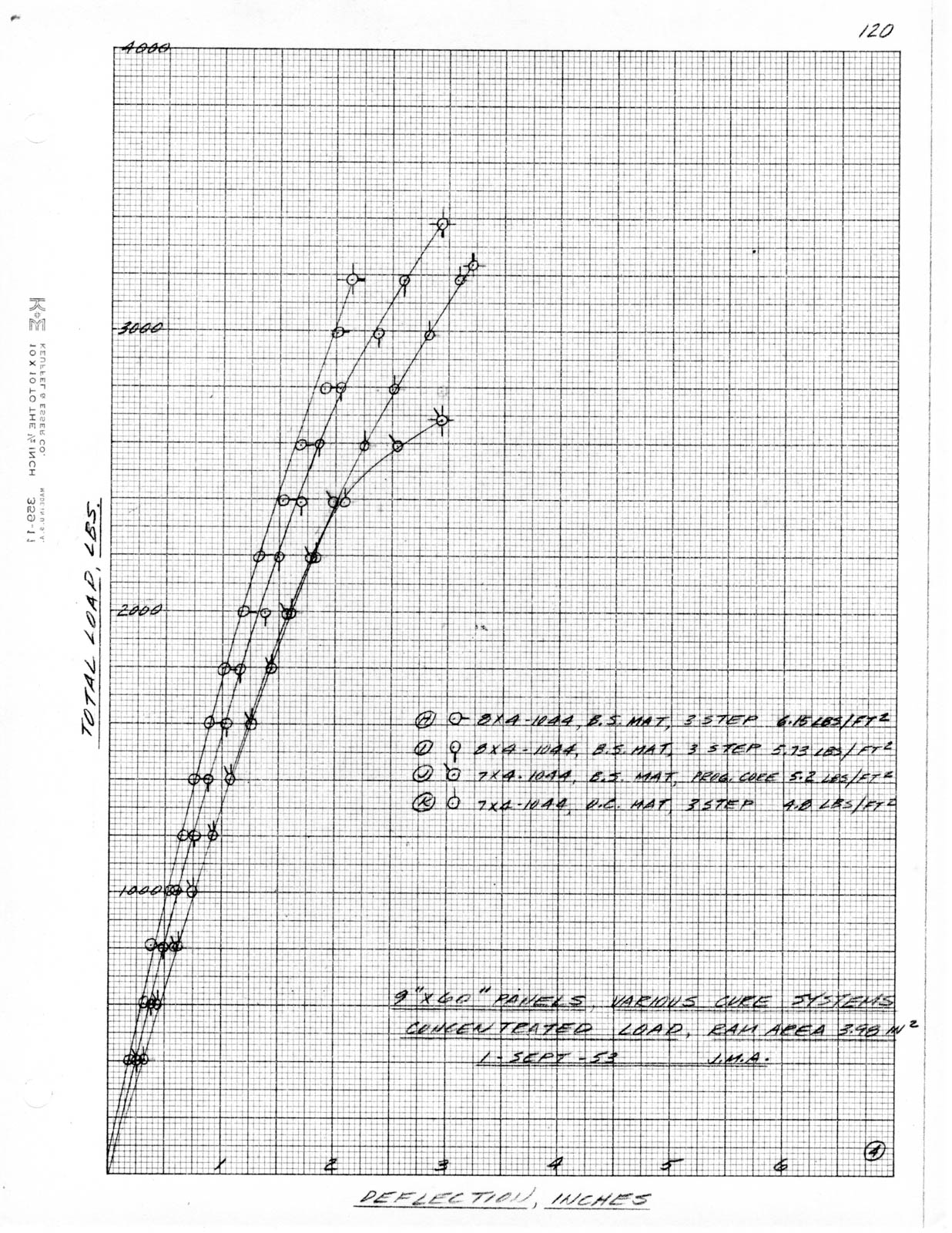

9"x60" Panels, Various Cure Systems Concentrated Load, Ram Area 3.98in²

Original page: 120

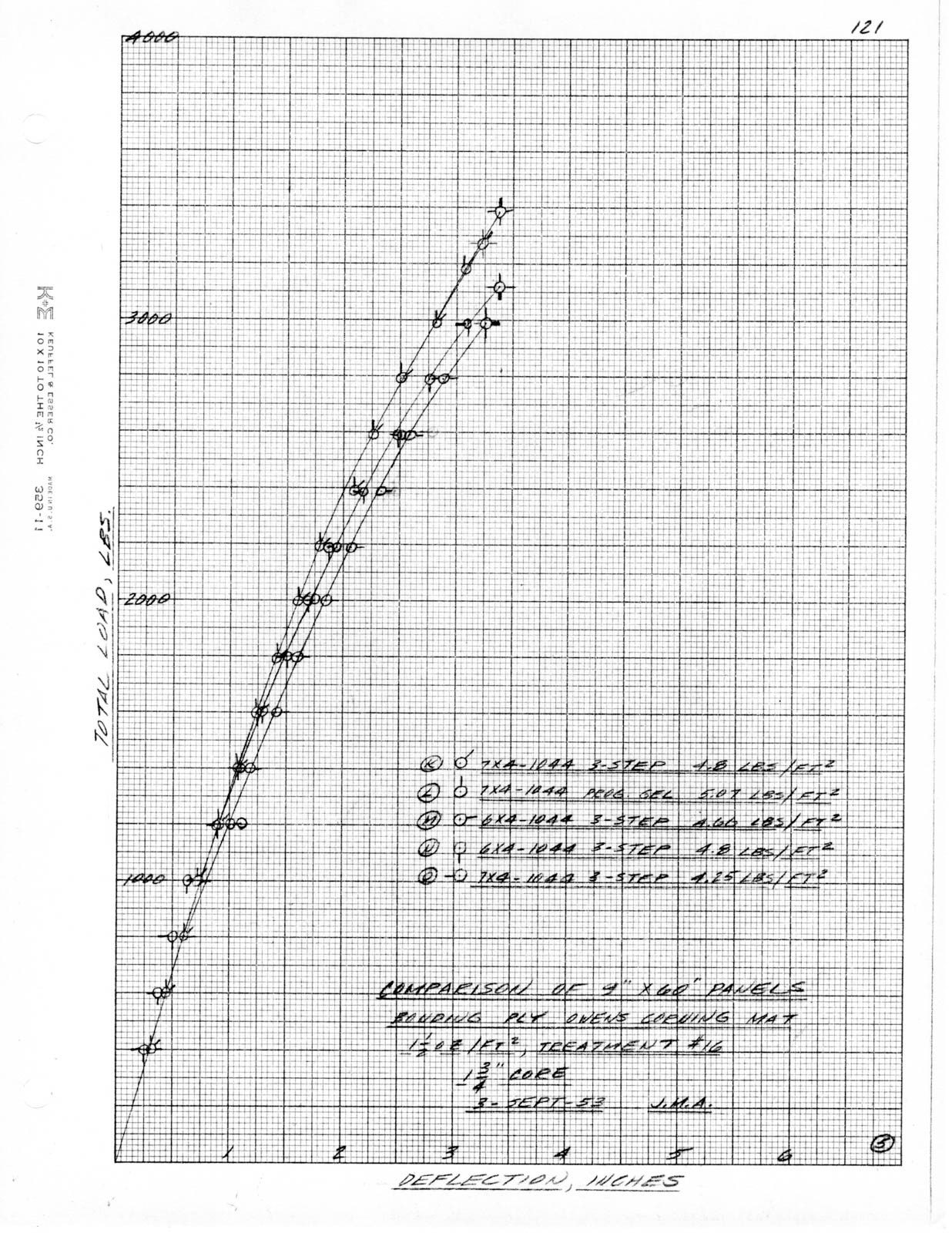

Compareison of 9"x60" Panels Bonding Ply Owens Corning Mat

Original page: 121

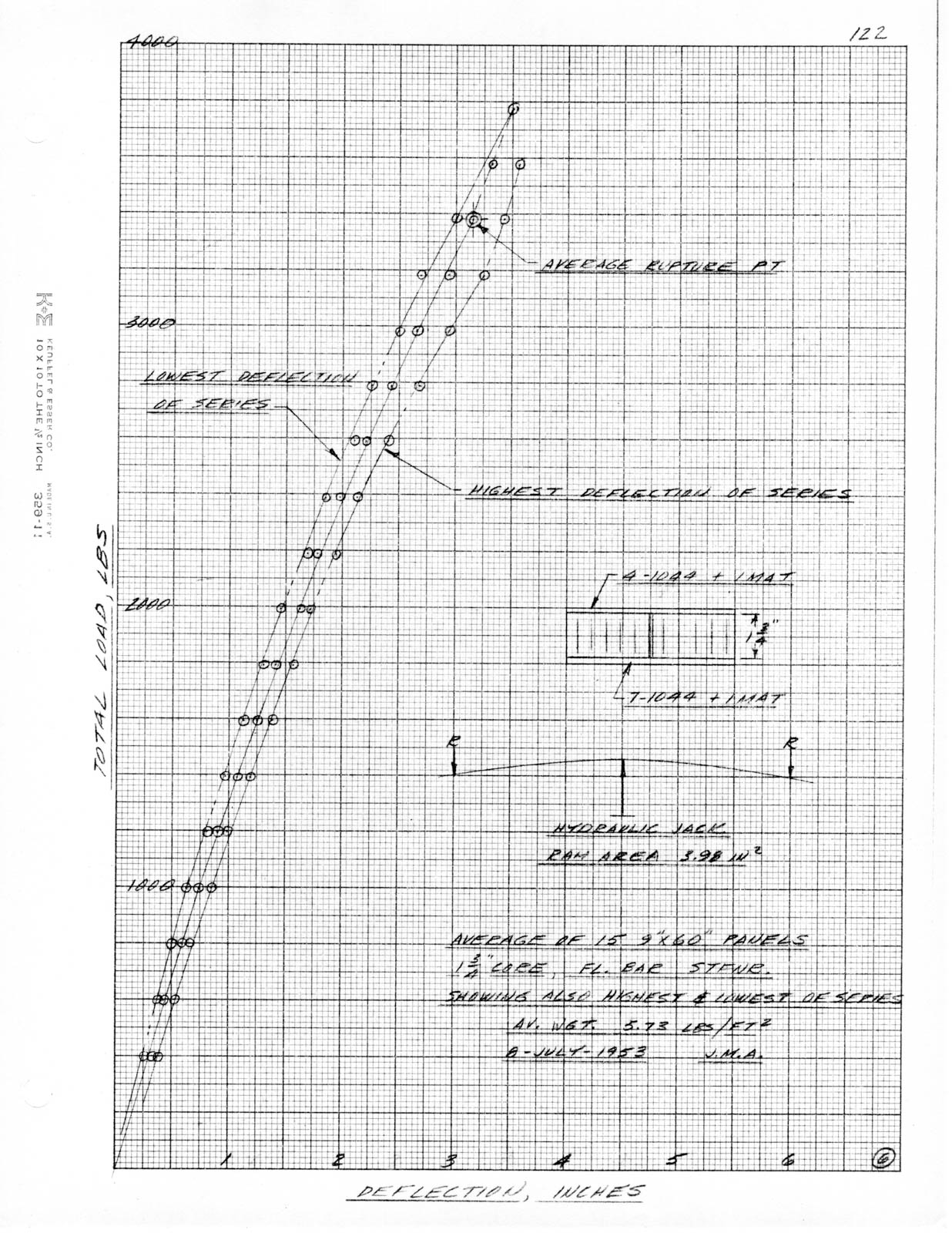

Average of 15 9"x60" Panels 1 3/4 Core Fl. Bar Stvnr.

Original page: 122

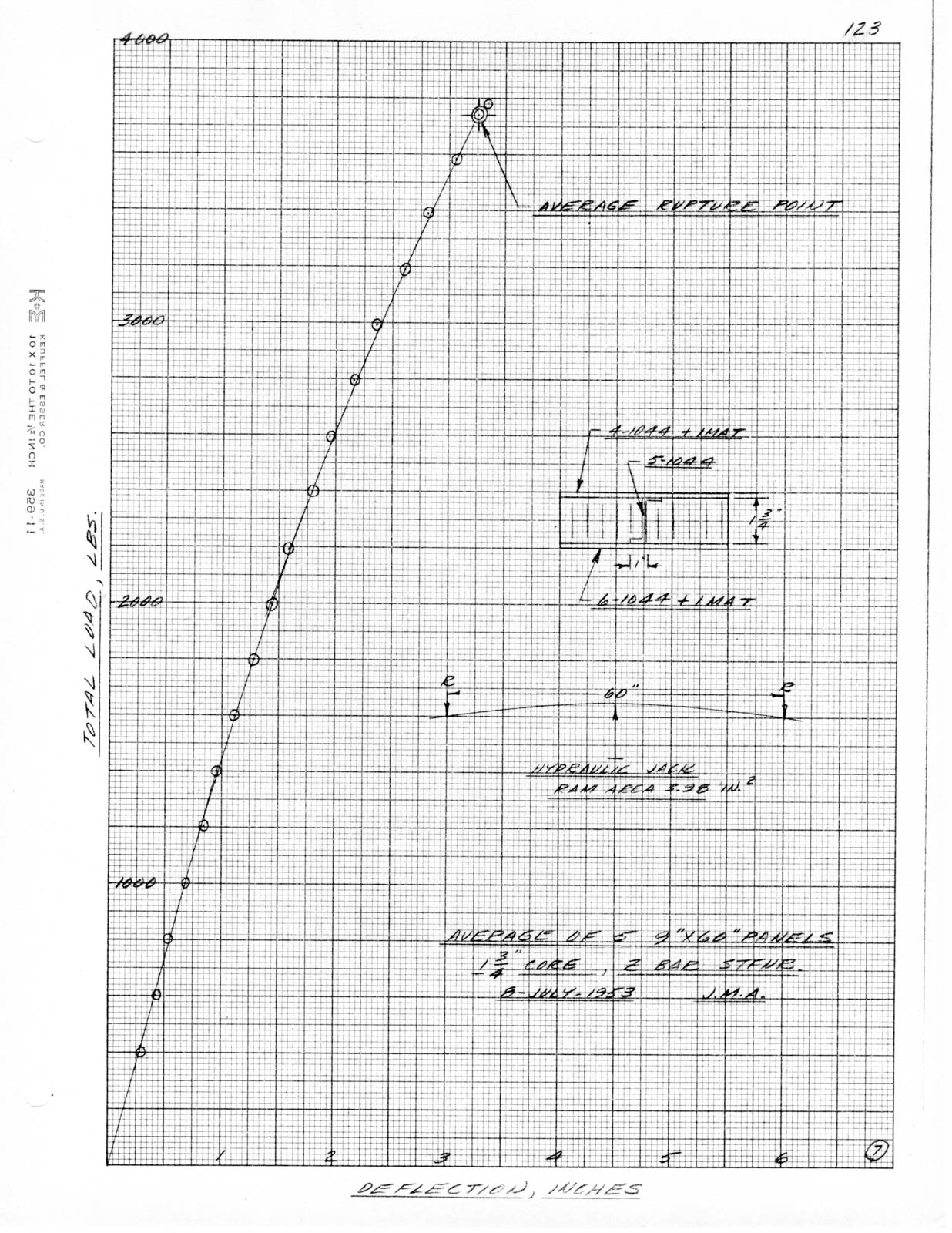

Average of 15 9"x60" Panels 1 3/4 Core Z Bar Stfnr.

Original page: 123

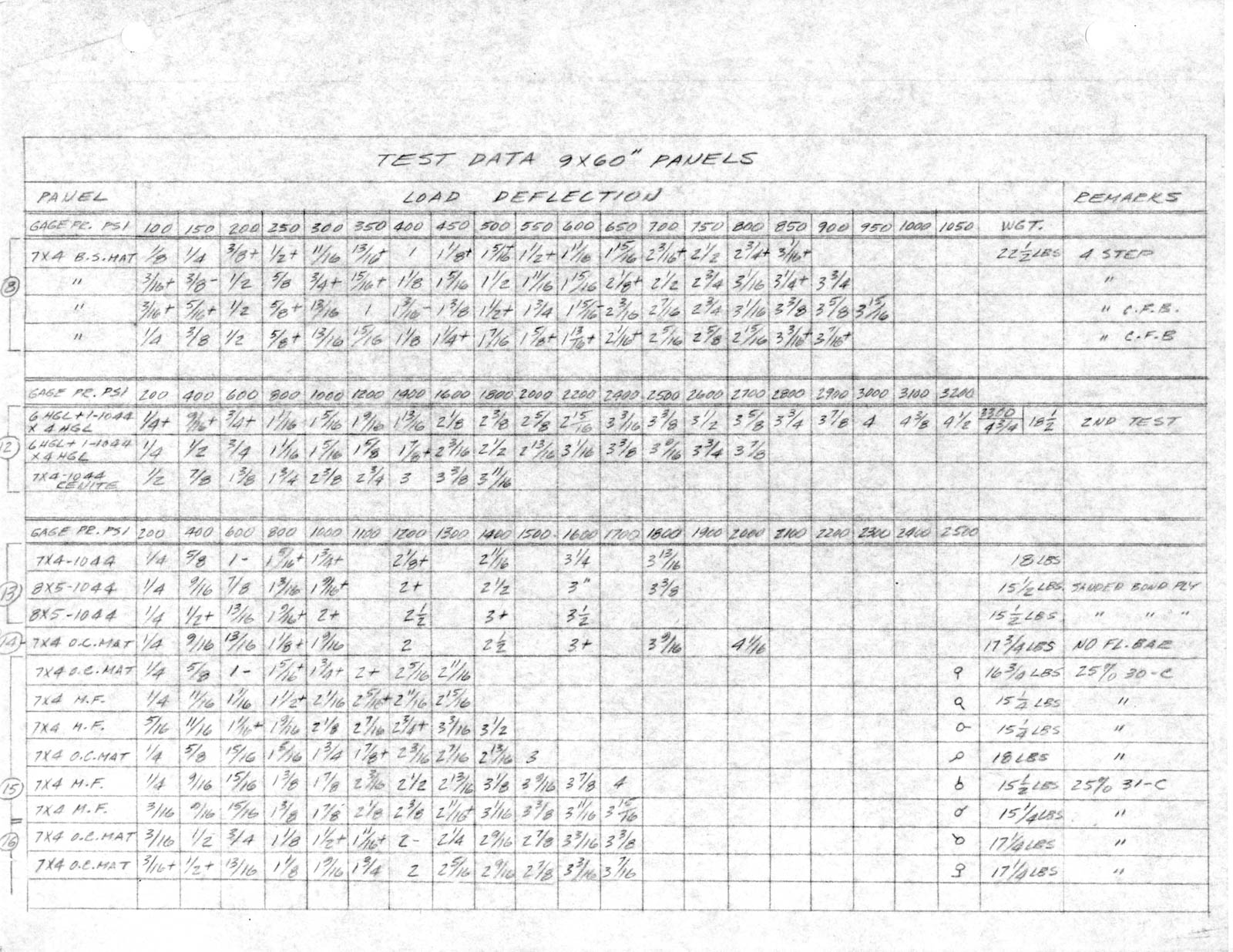

Test Data 9x60" Panels

Original page: 124

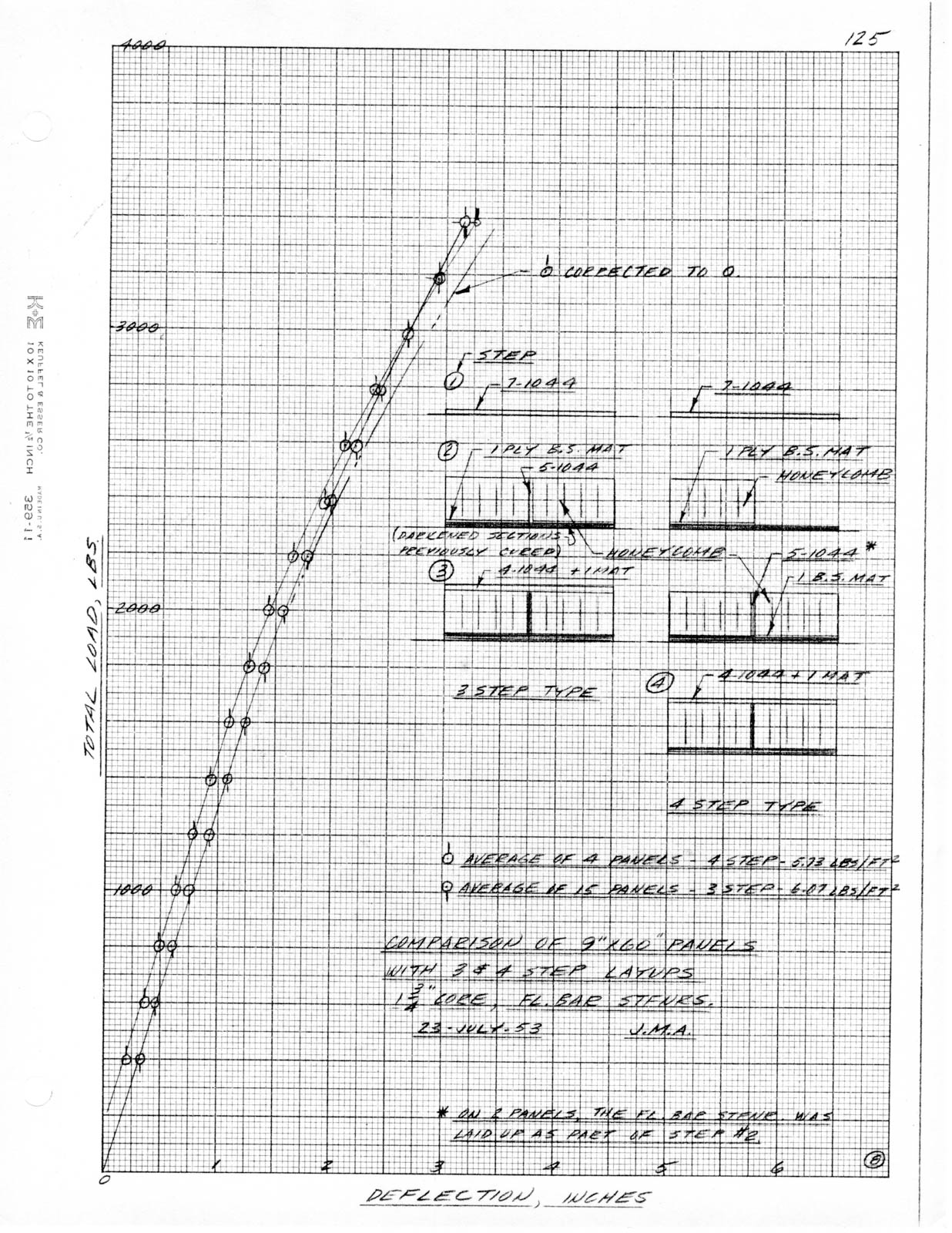

Comparison of 9"x60" Panels with 3 & 4 Step Layups

Original page: 125

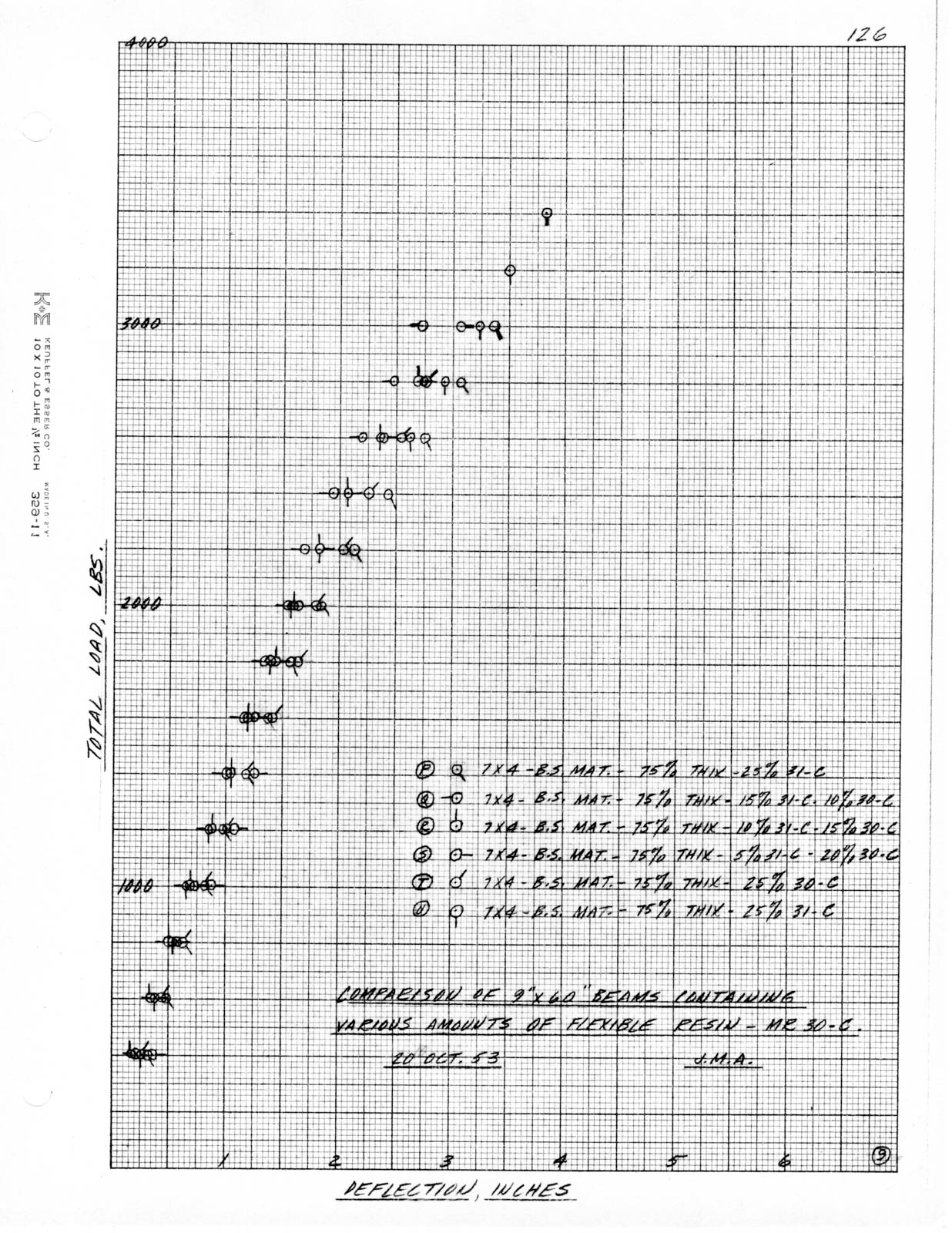

Comparison of 9"x60" Beams Containing Various Amounts of Flexible Resin

Original page: 126

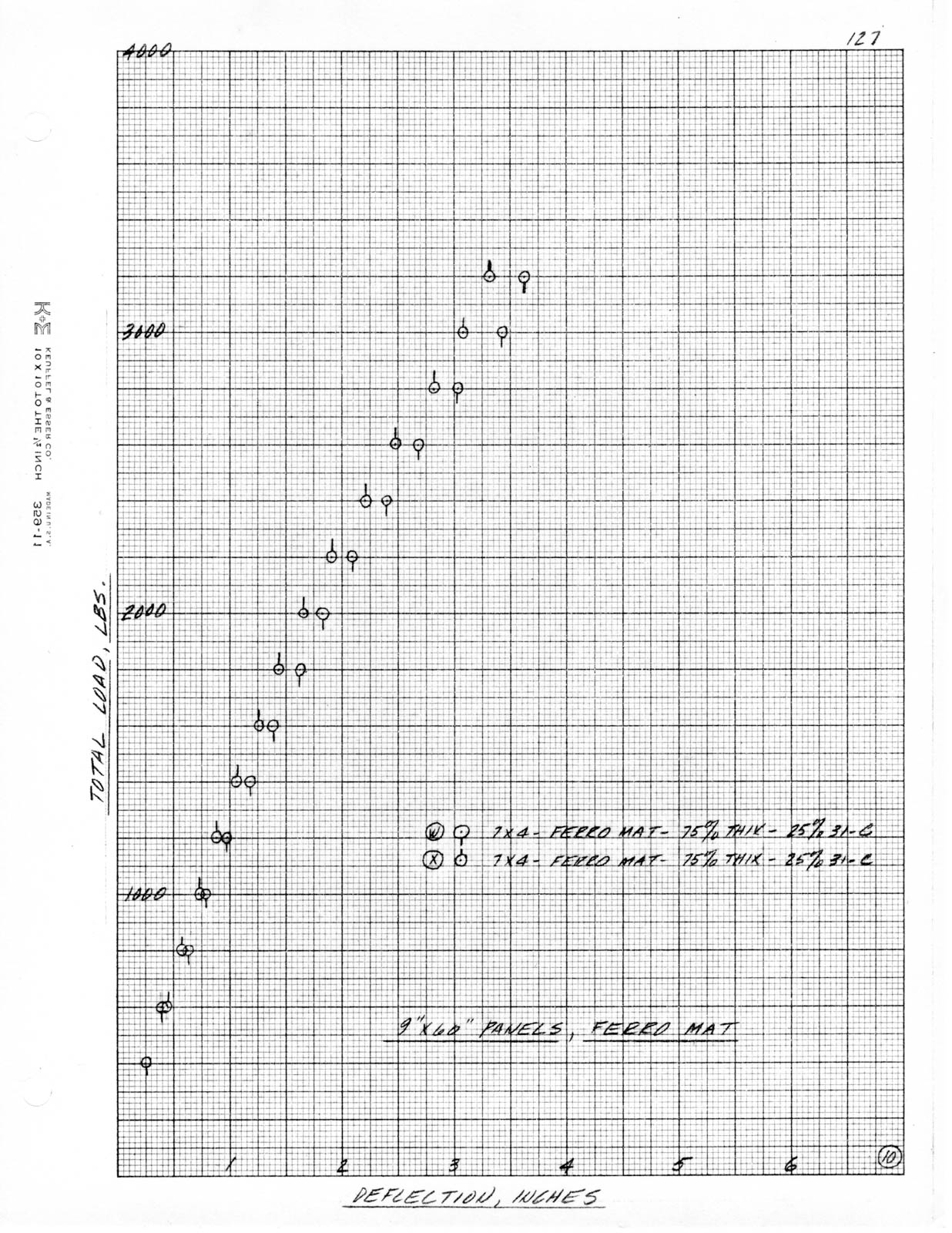

9"x60" Panels, Ferro Mat

Original page: 127

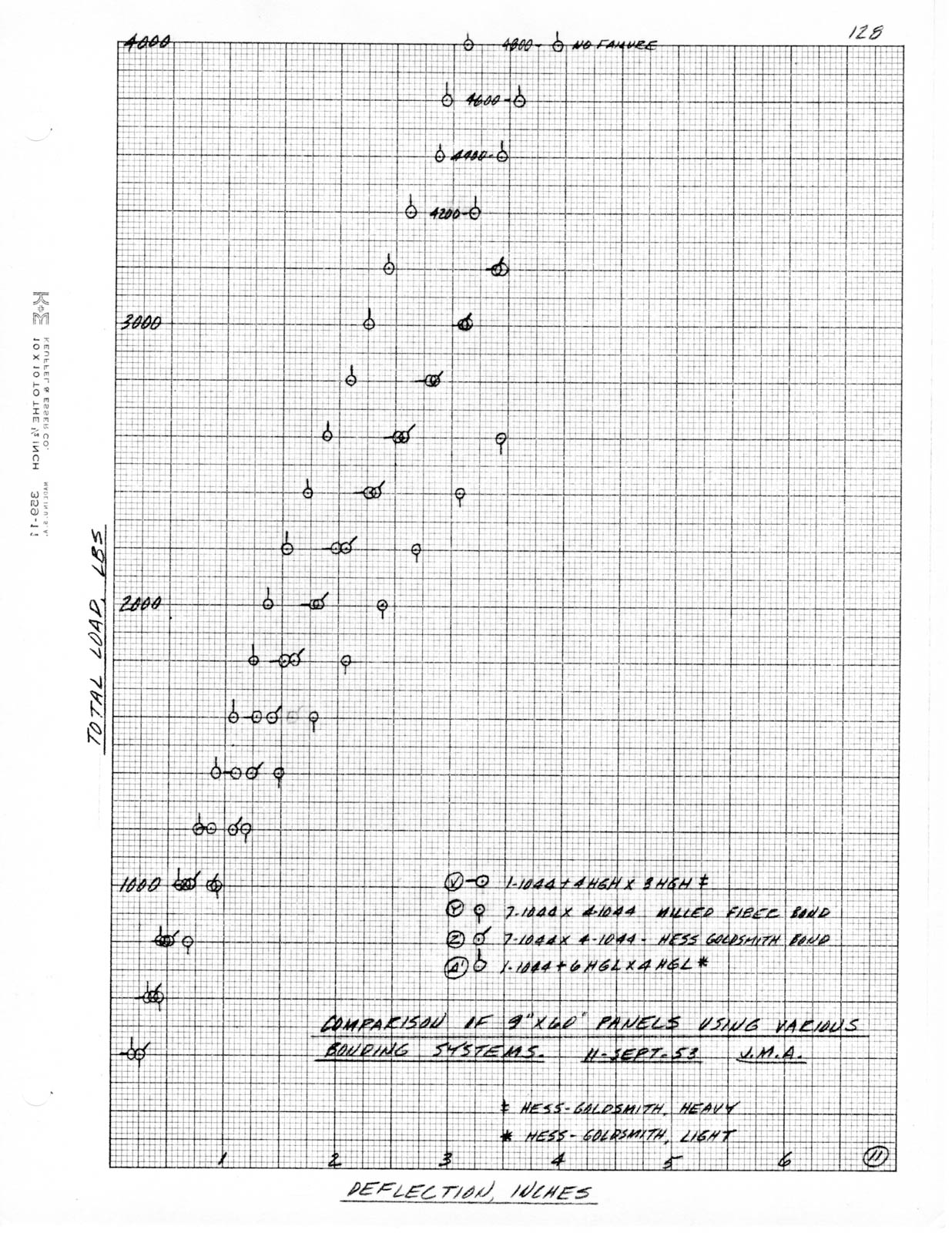

Comparison of 9"x60" Panels Using Various Bonding Systems

Original page: 128

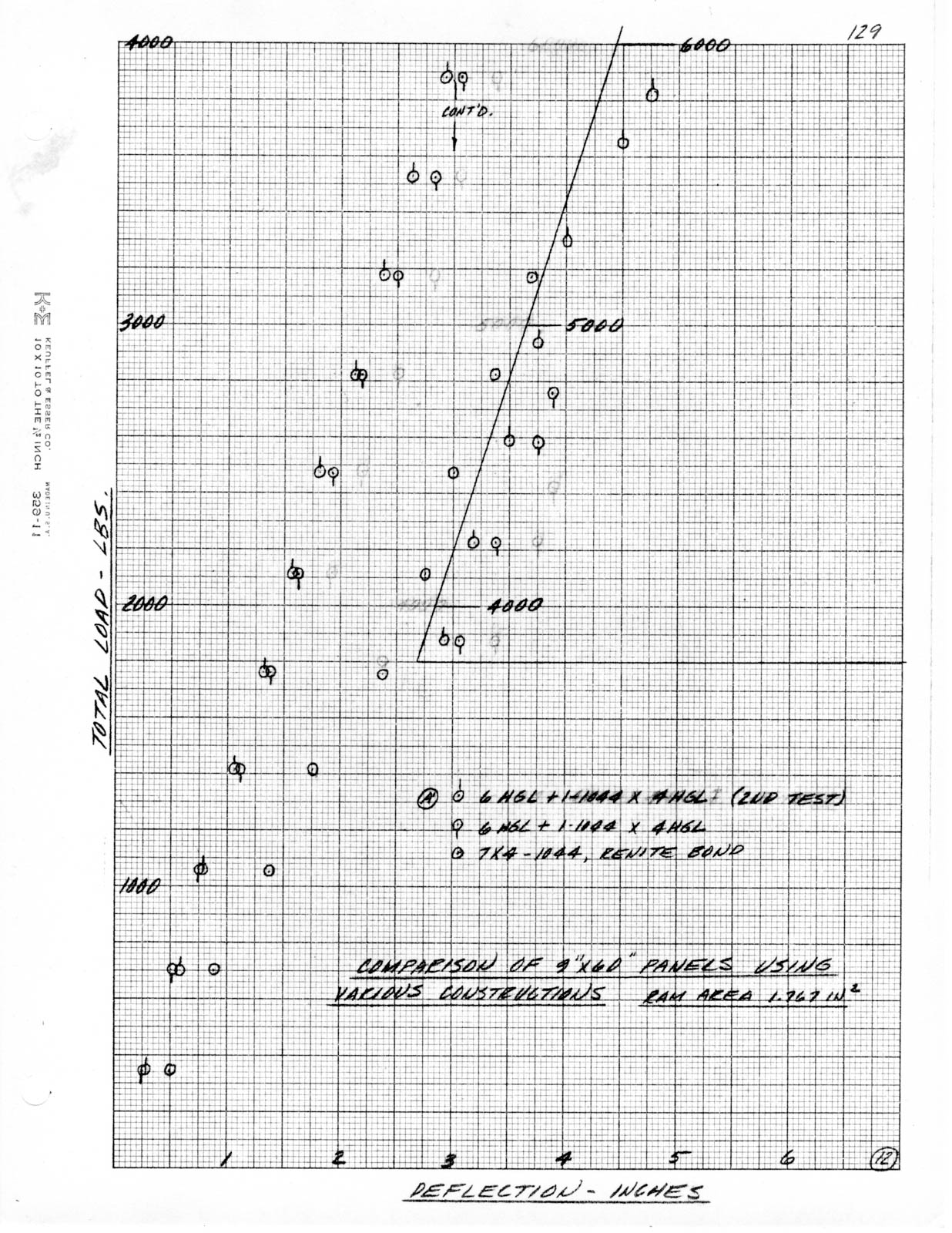

Comparison of 9"x60" Panels Using Various Constructions

Original page: 129

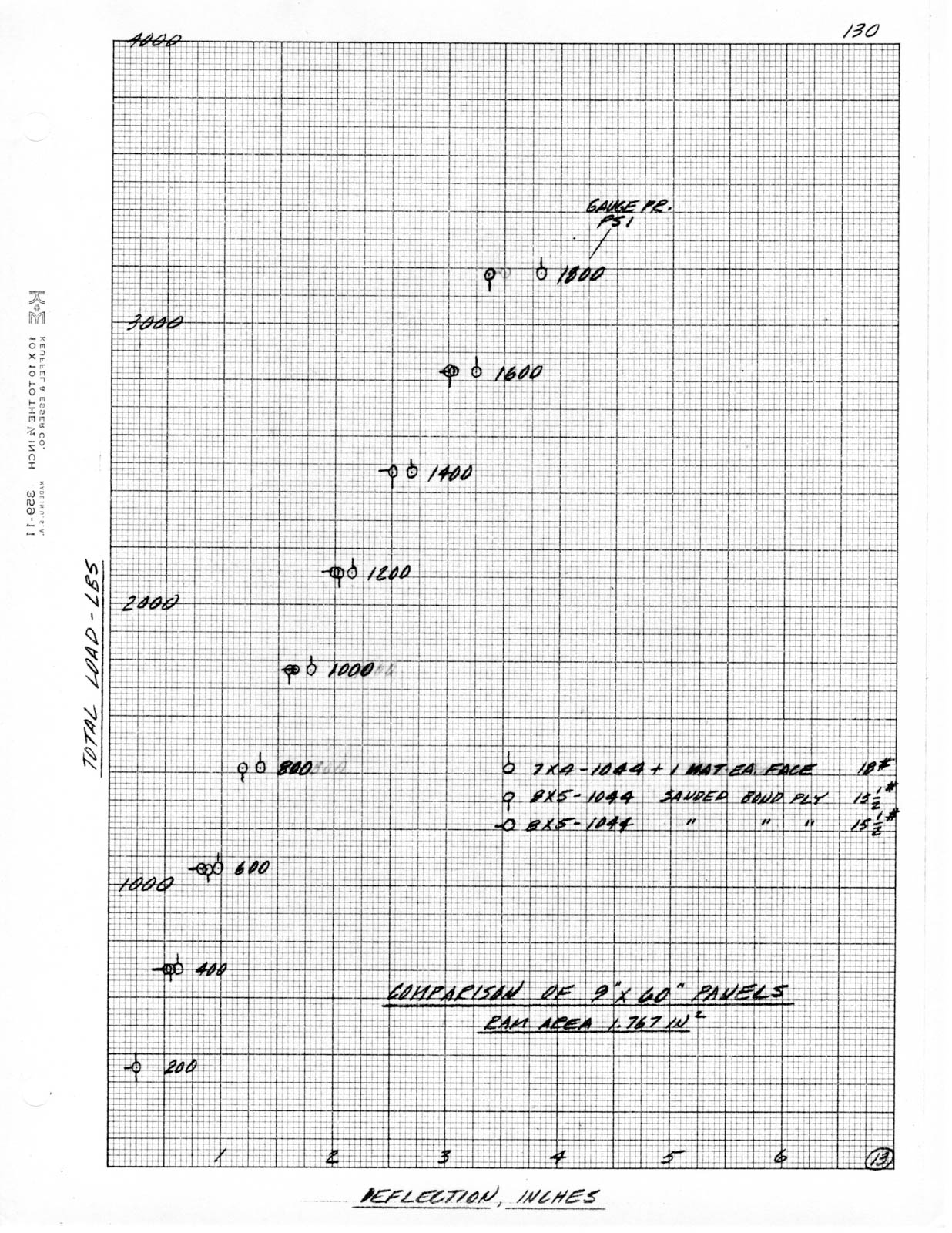

Comparison of 9"x60" Panels Ram Area 1.767in²

Original page: 130

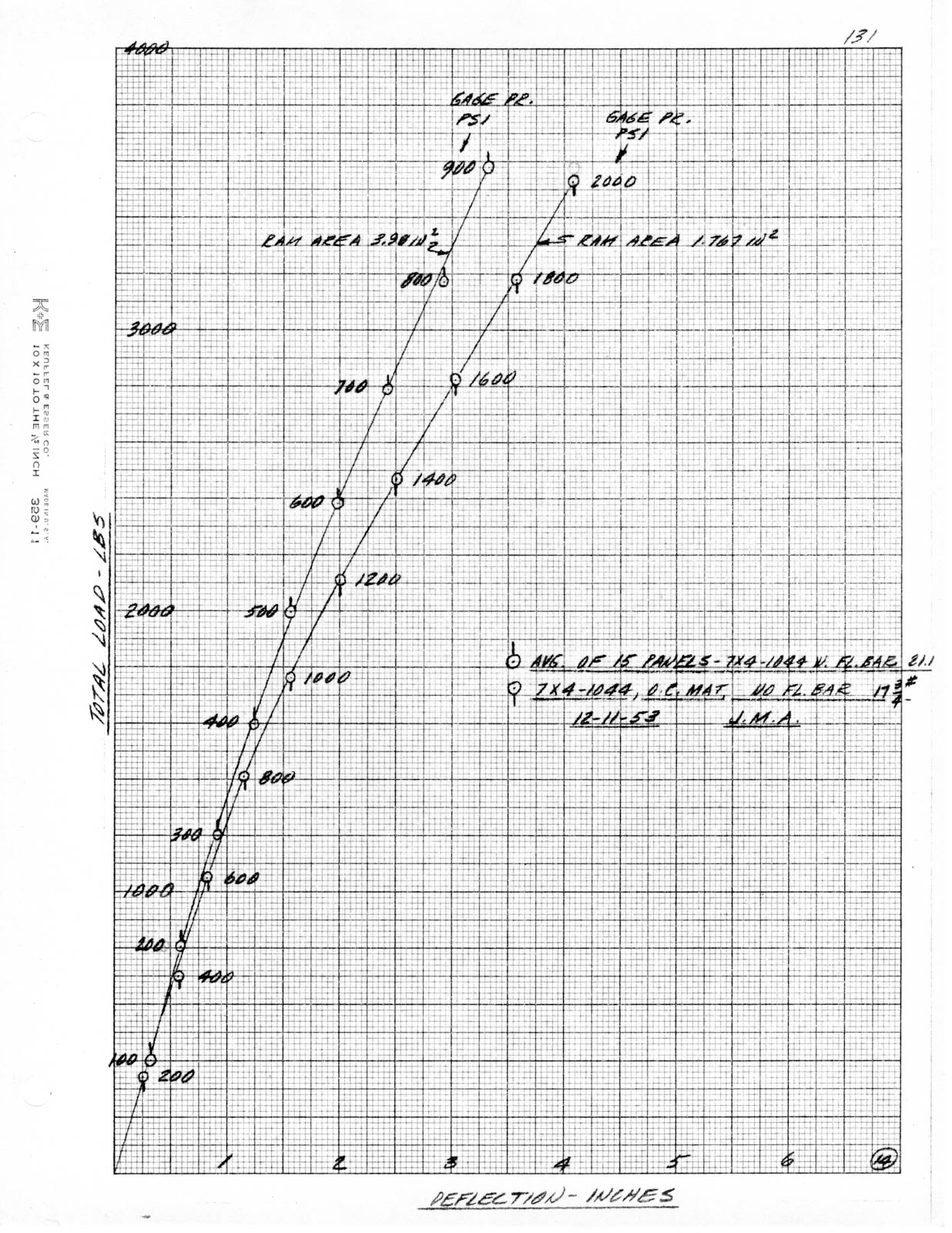

Avg of 15 Panels 12-11-53 J.M.A.

Original page: 131

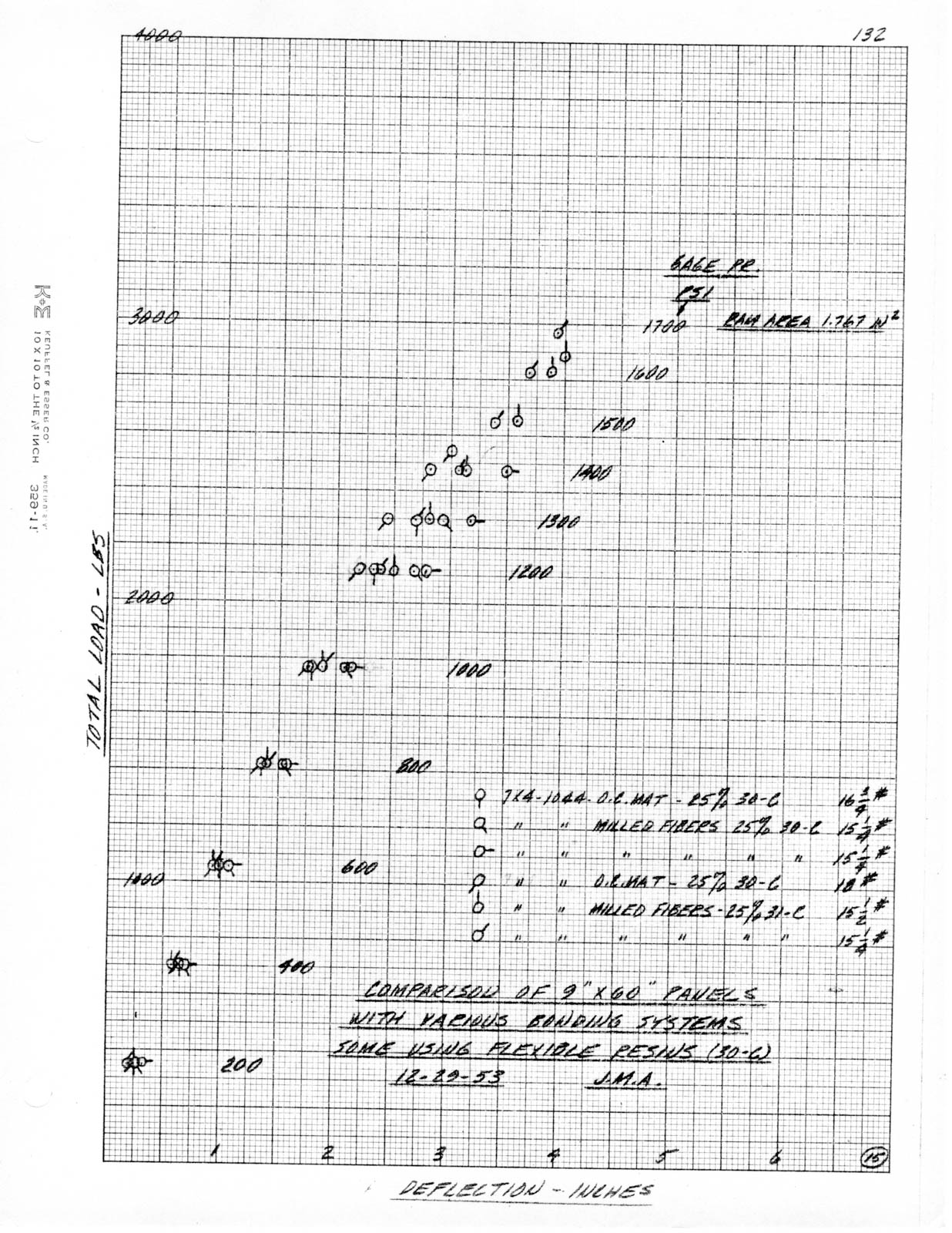

Comparison of 9"x60" Panel with Various Bonding Systems Some Using Flexiable Resins

Original page: 132

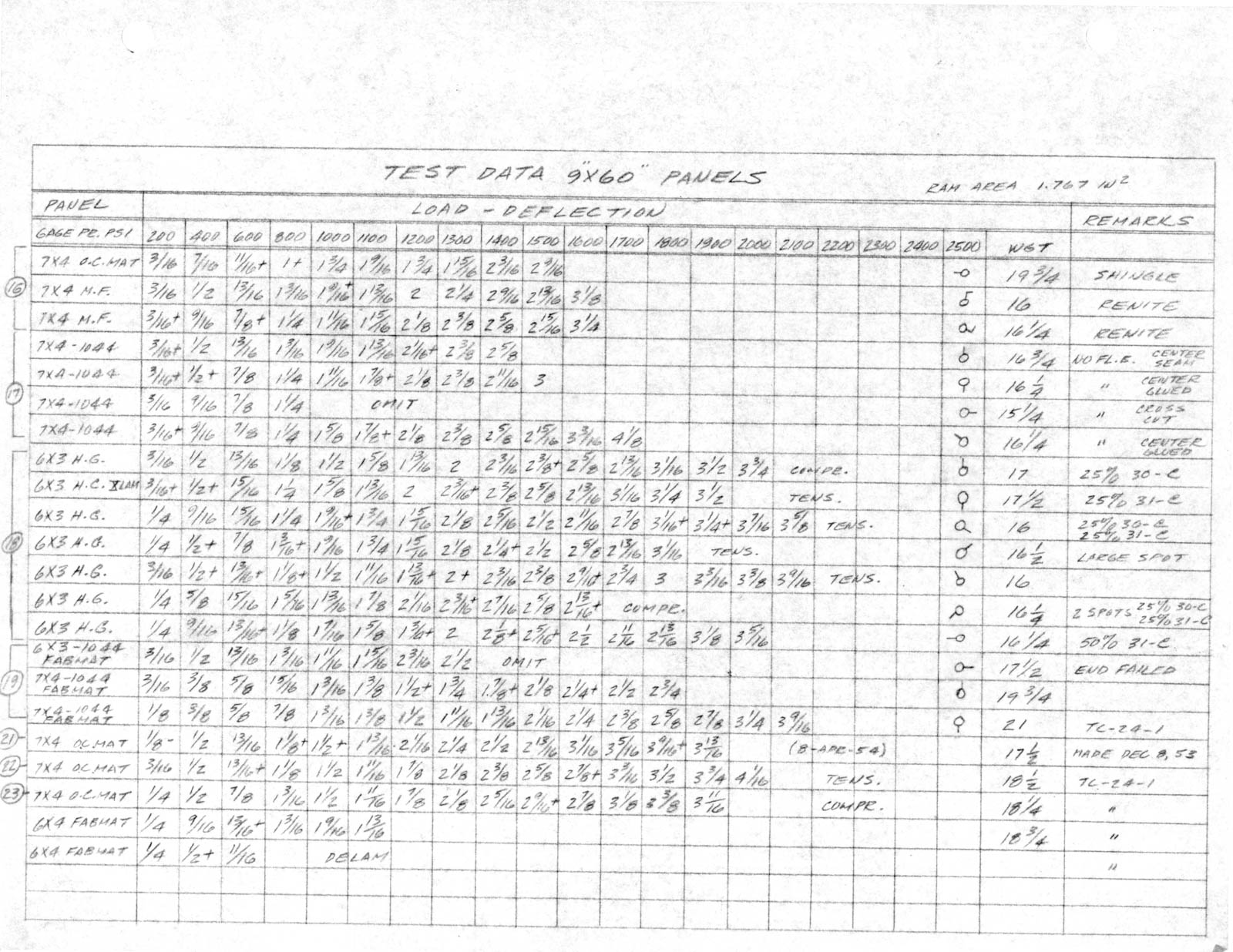

Test Data 9"x60" Panels

Original page: 133

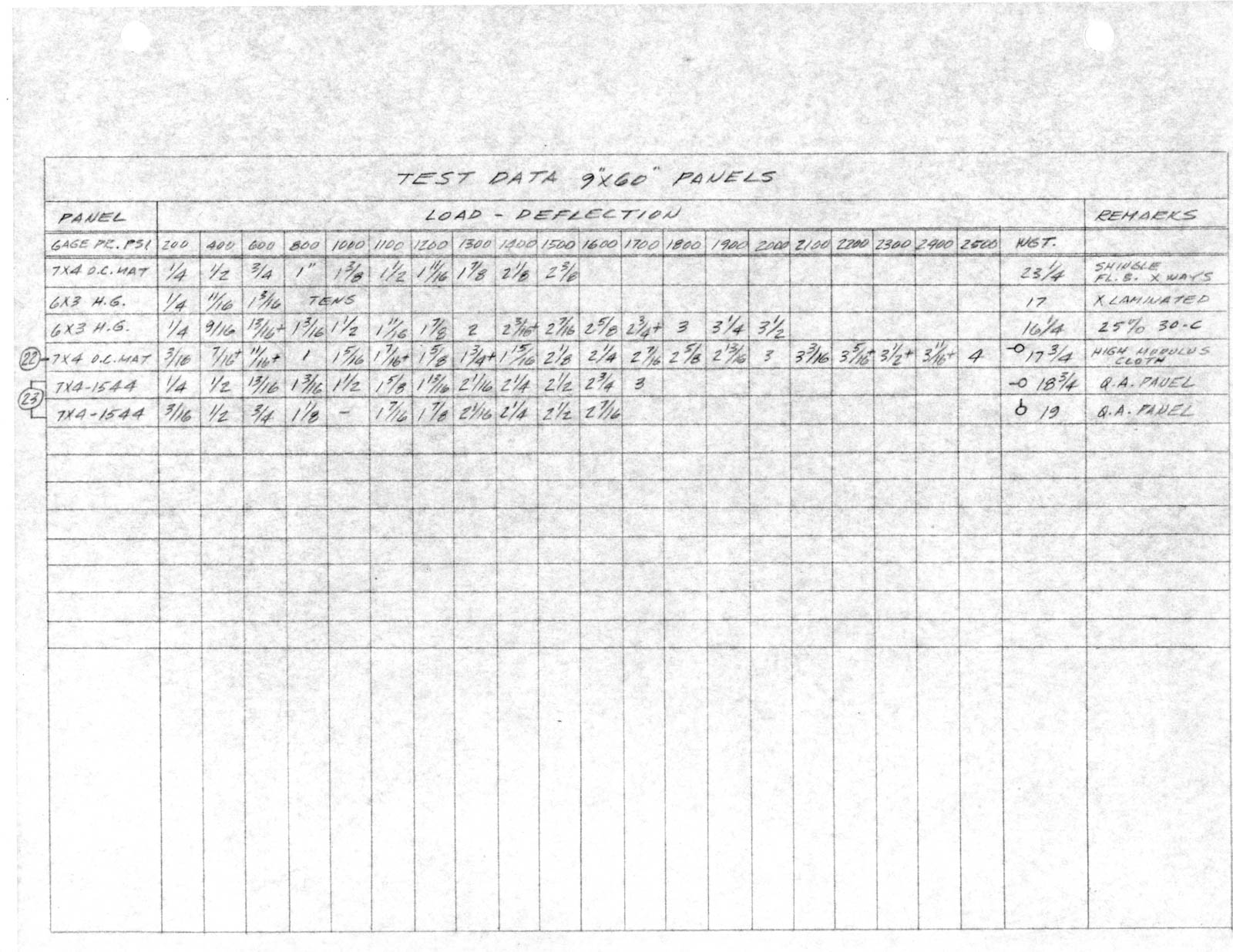

Test Data 9"x60" Panels

Original page: 134

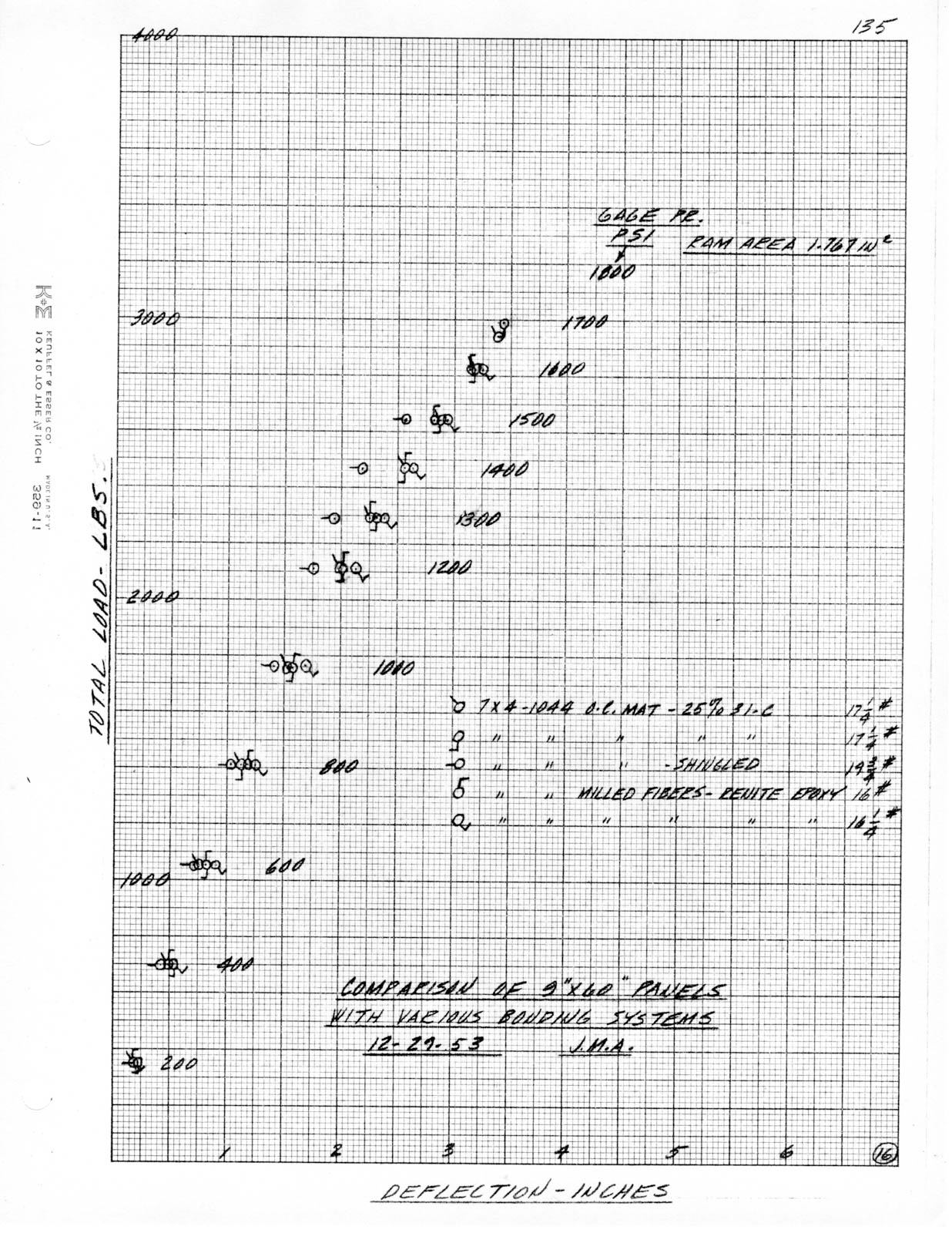

Comparison of 9"x60" Panels with Various Bonding Systems 12-29-53

Original page: 135

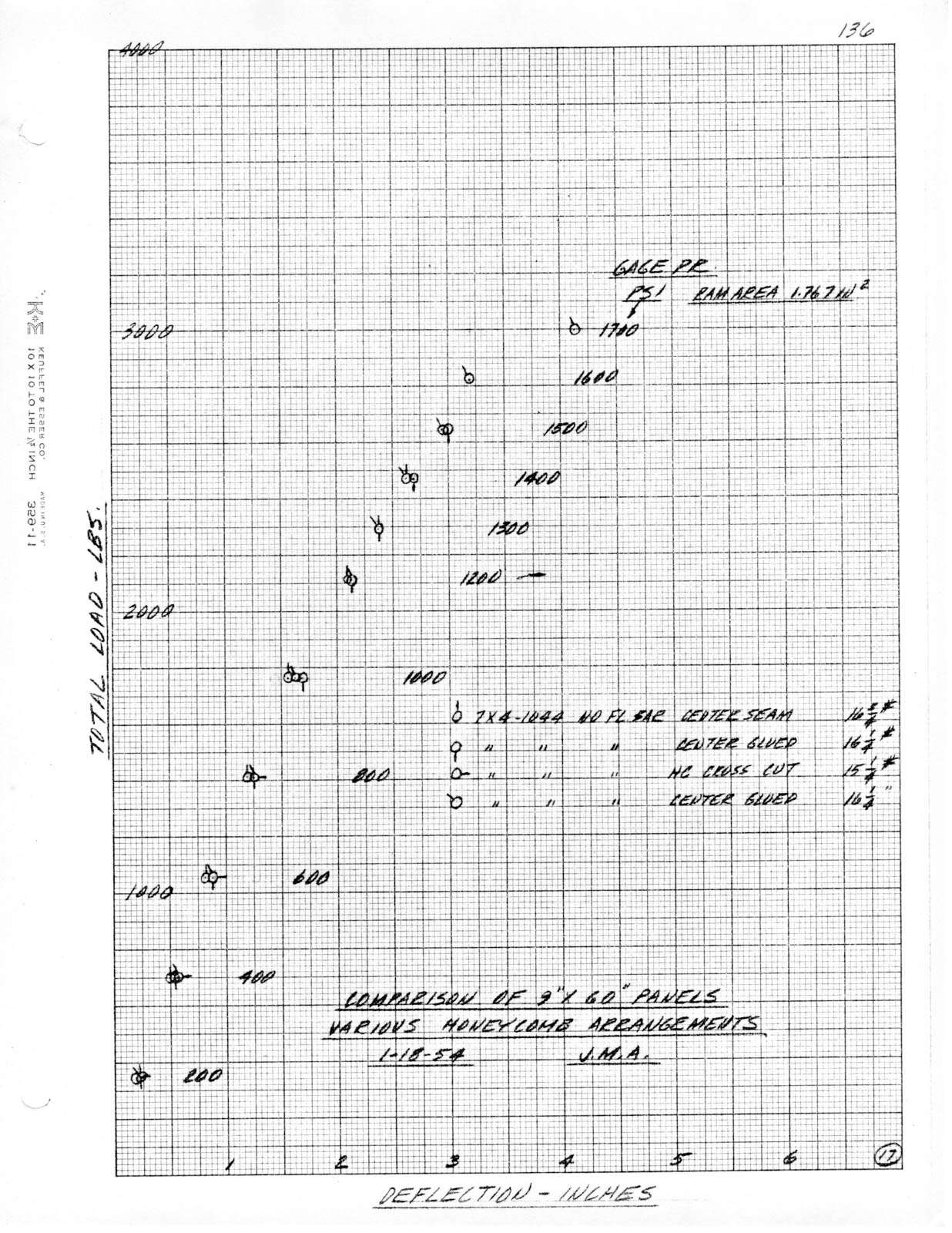

Comparison of 9"x60" Panels Various Honeycomb Arrangements 1-18-54

Original page: 136

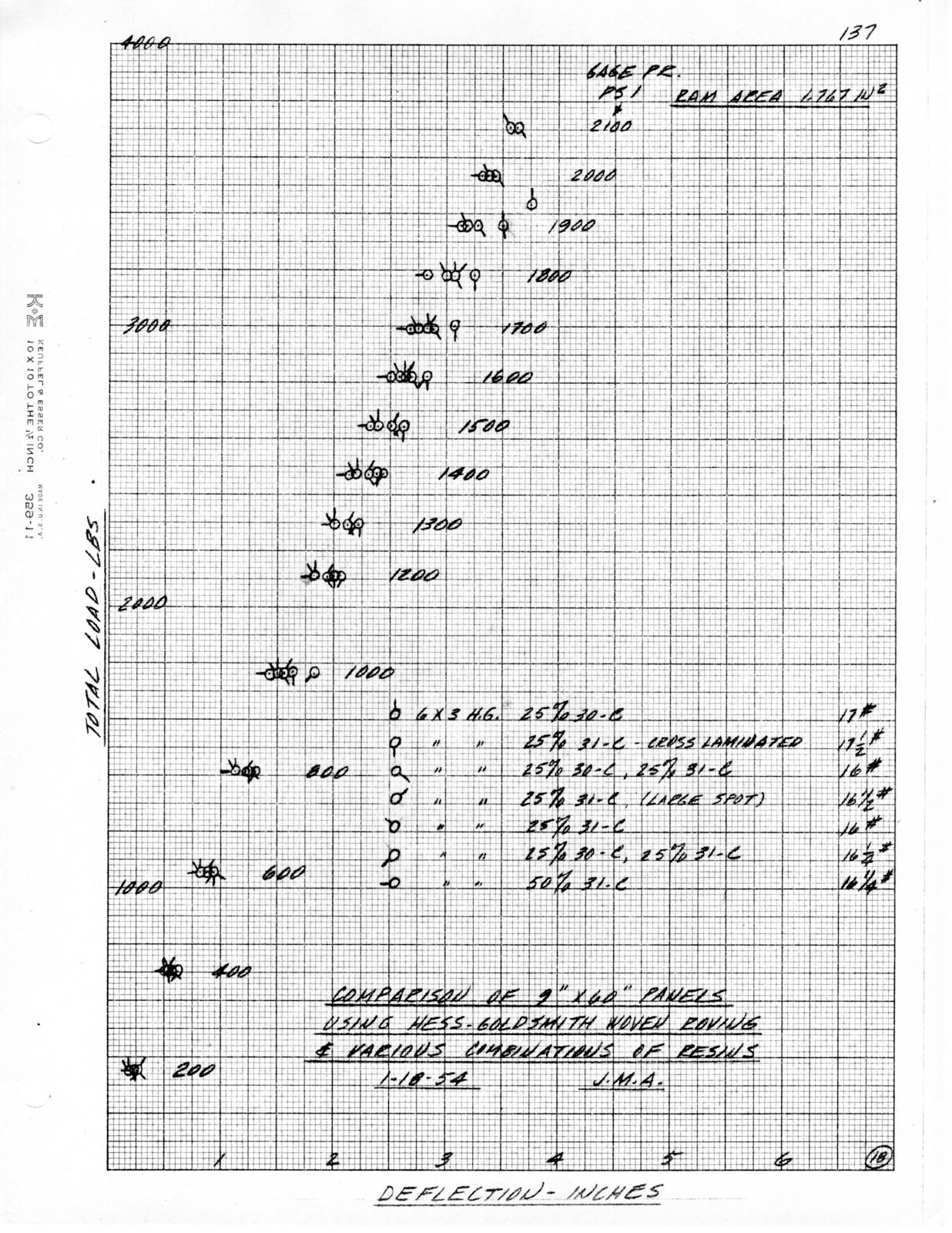

Comparison of 9"x60" Panels Using Hess Goldsmith Woven Roving & Various Combinations of Reisns 1-18-54

Original page: 137

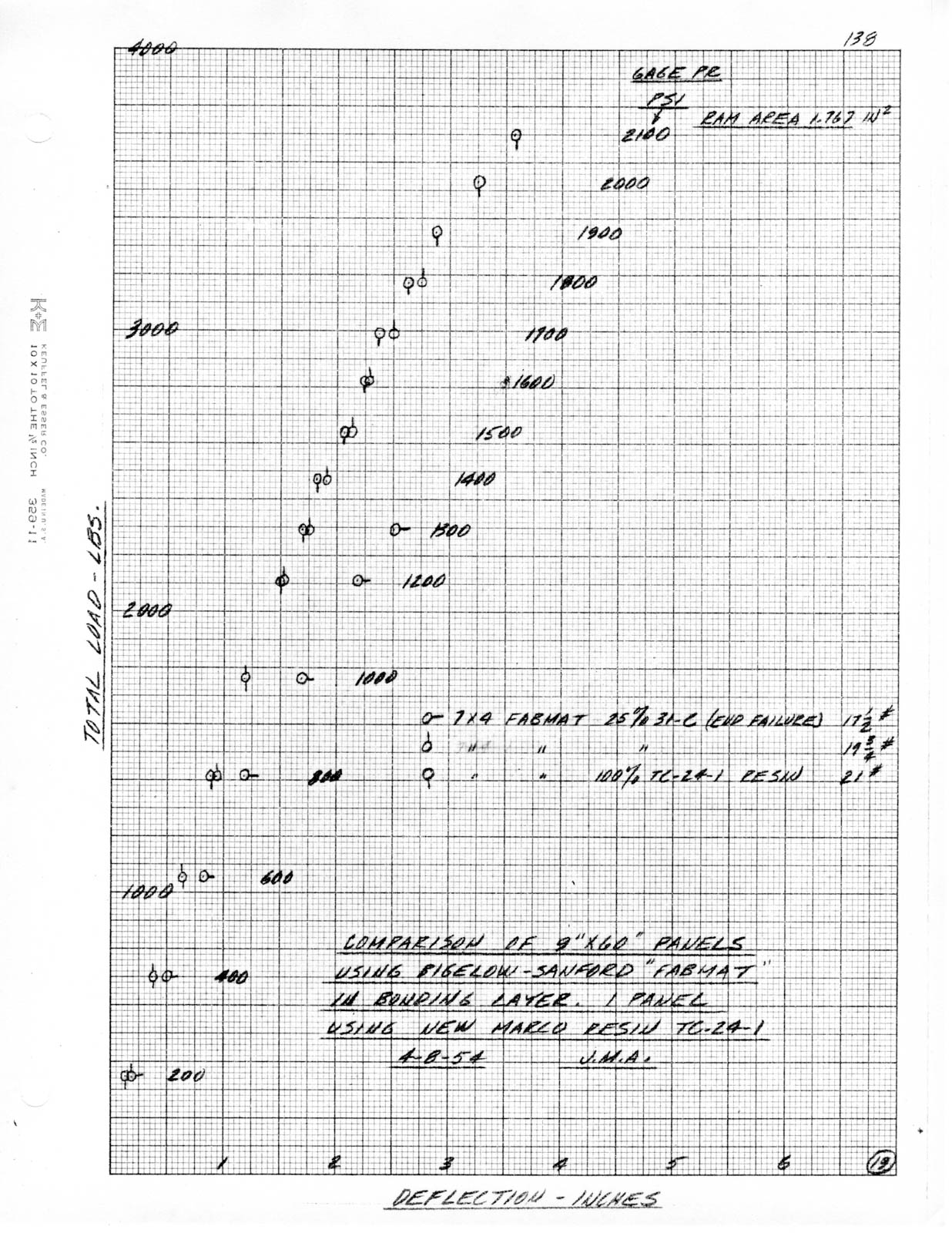

Comparison of 9"x60" Panels Using Bigelow-Sanford "Fabmat" in Bonding Layer

Original page: 138

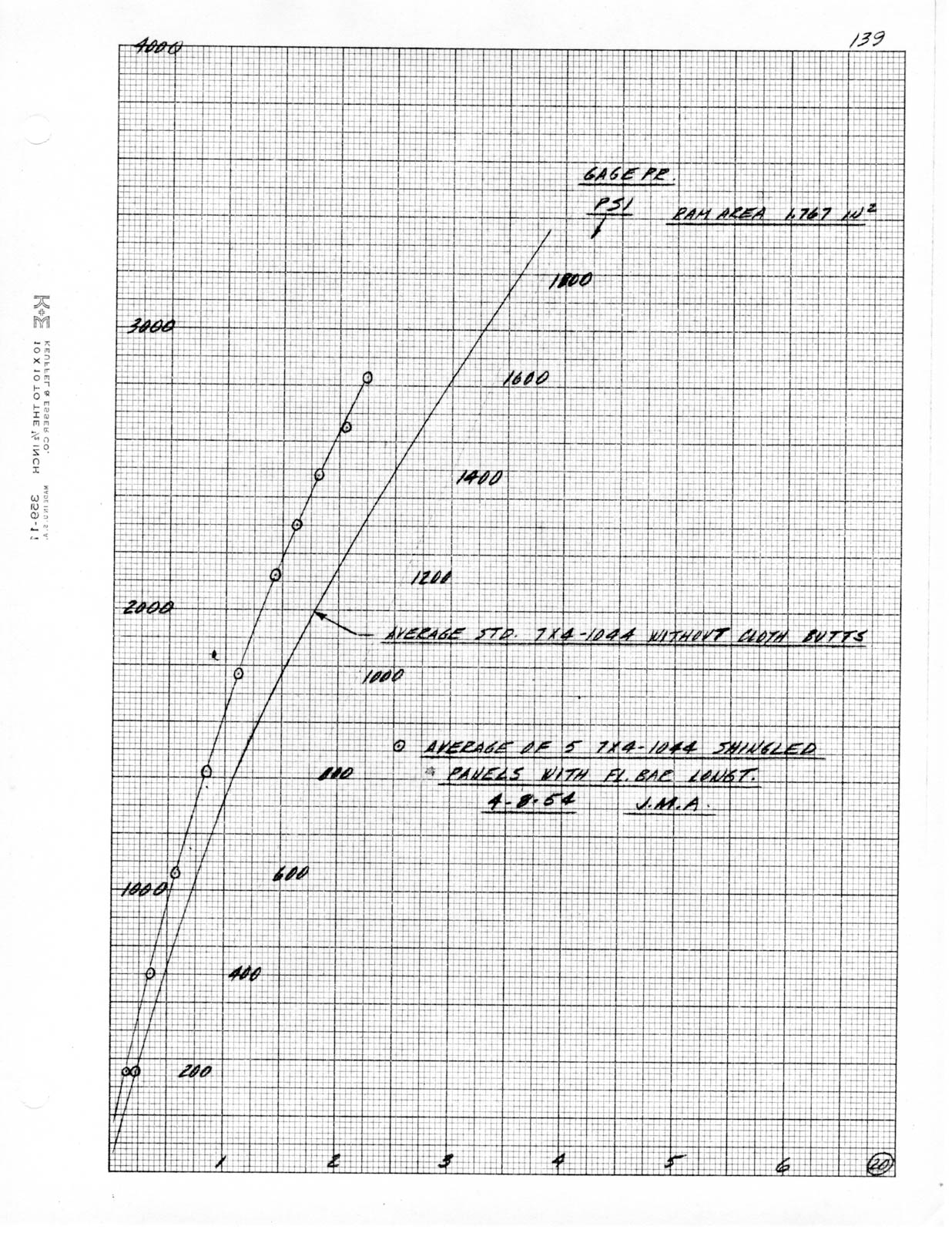

Average of 5 7x4-1044 Shingled Panels with Fl Bar Longt 4-8-54

Original page: 139

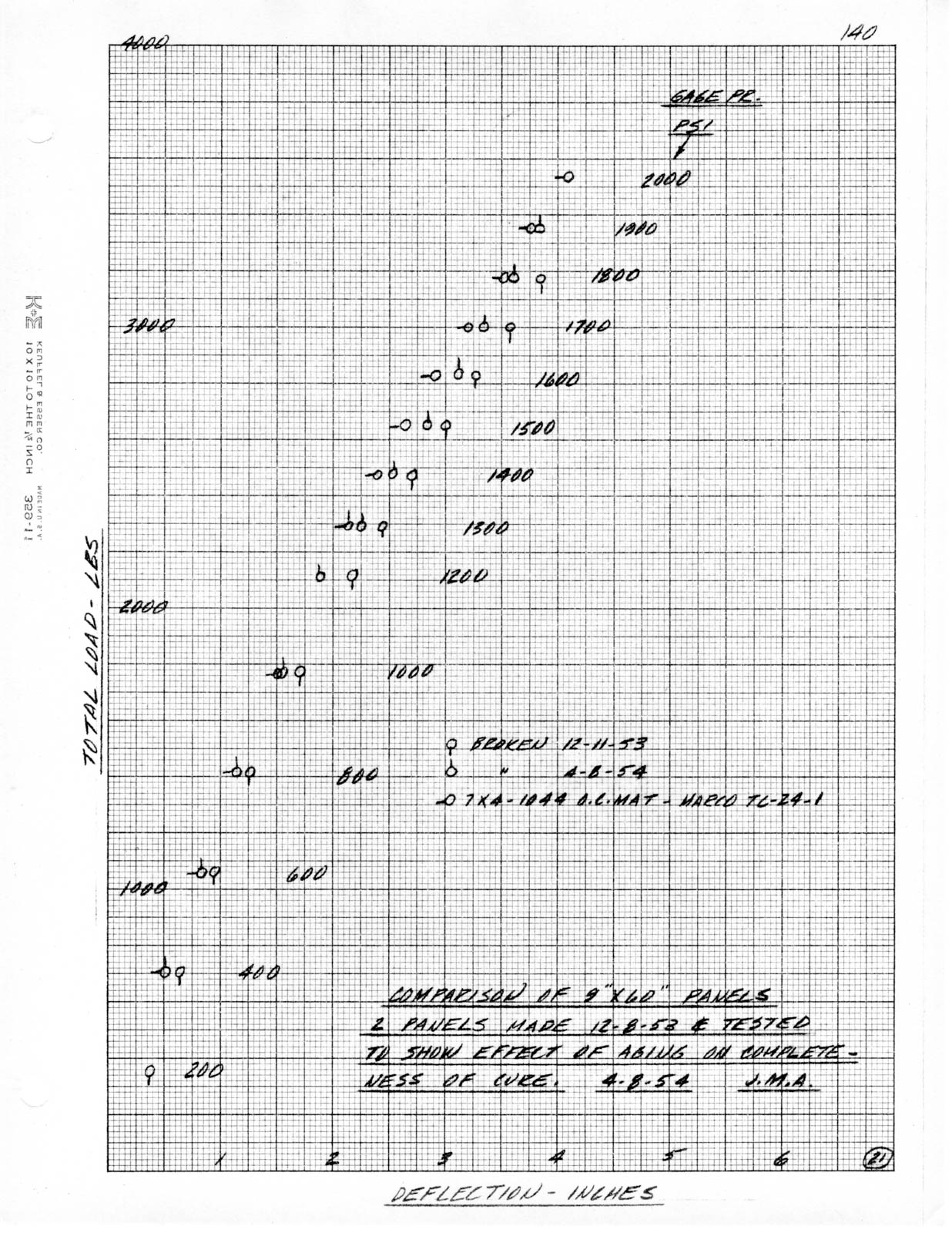

Comparison of 9"x60" Panels 2 Panels Made 12-8-52 & Tested to Show Effect of Aging on Completeness of Cure

Original page: 140

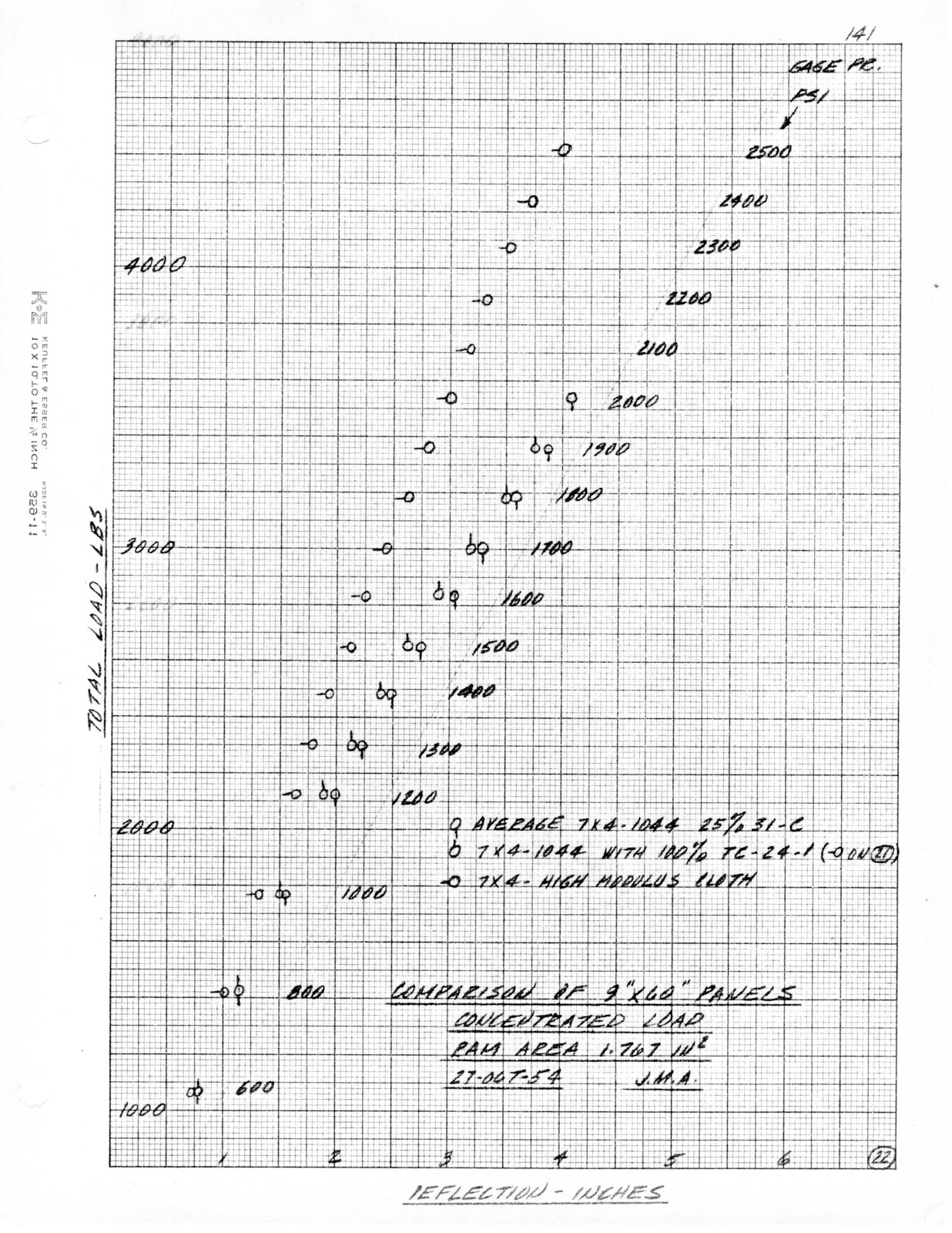

Comparison of 9"x60" Panels Concentrated Loan ram Area 1.767 in² 27-Oct-54

Original page: 141

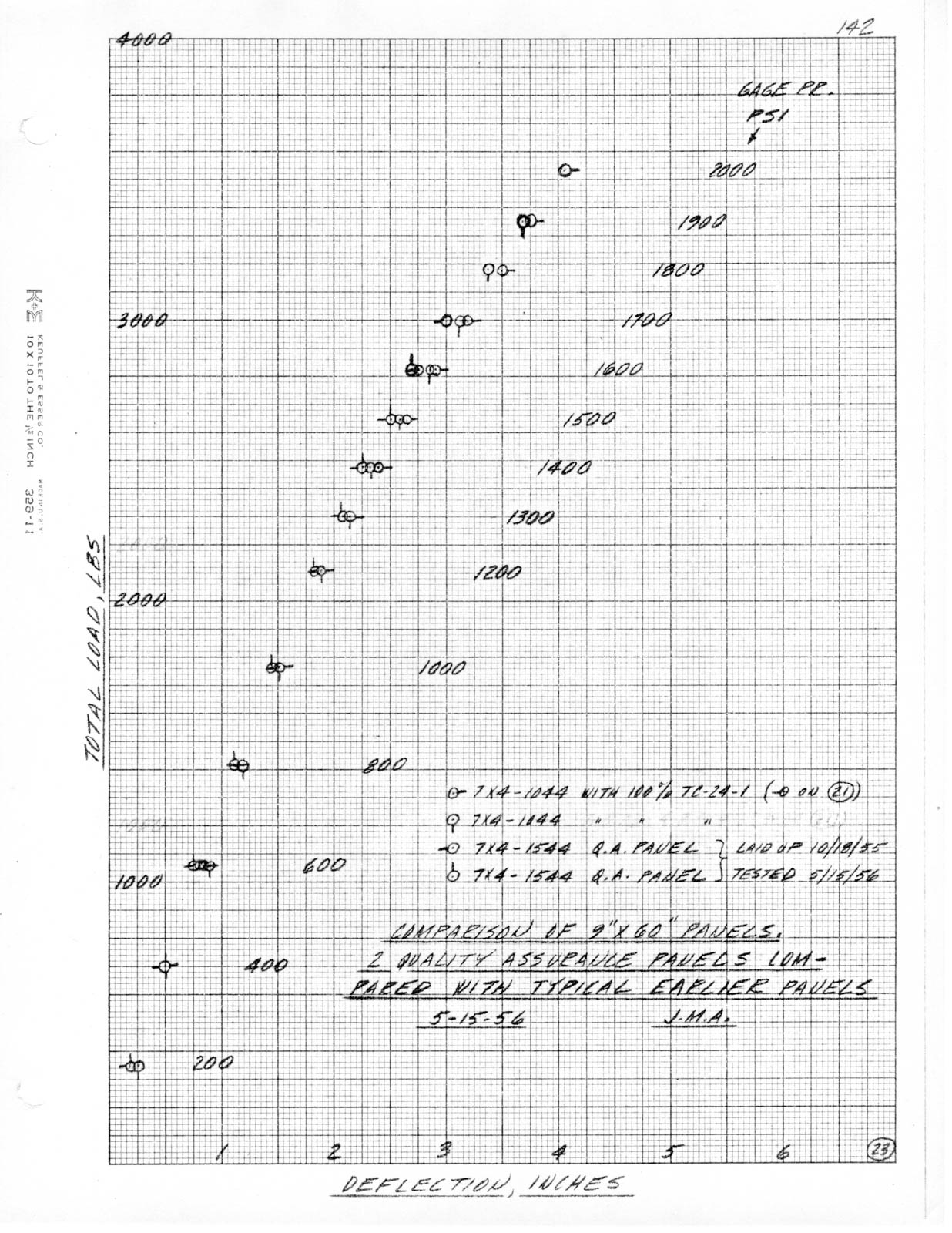

Comparison of 9"x60" Panels 2 Quality Assurance Panels Compared with Typical Earlier Panels 5-15-56

Original page: 142
