Appendix D

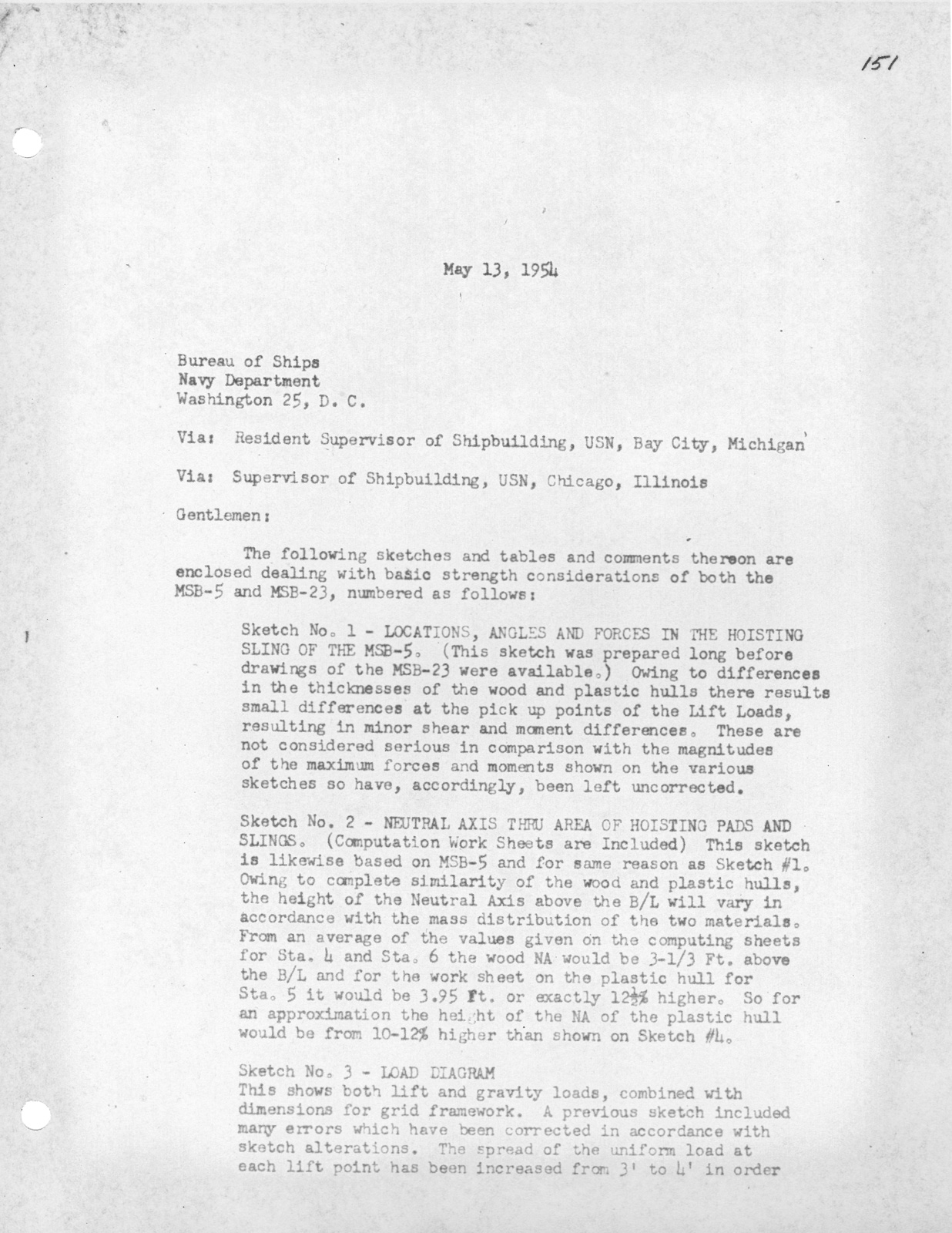

Bureau of Ships Navy Deparment Letter Page 1

Original page: 151

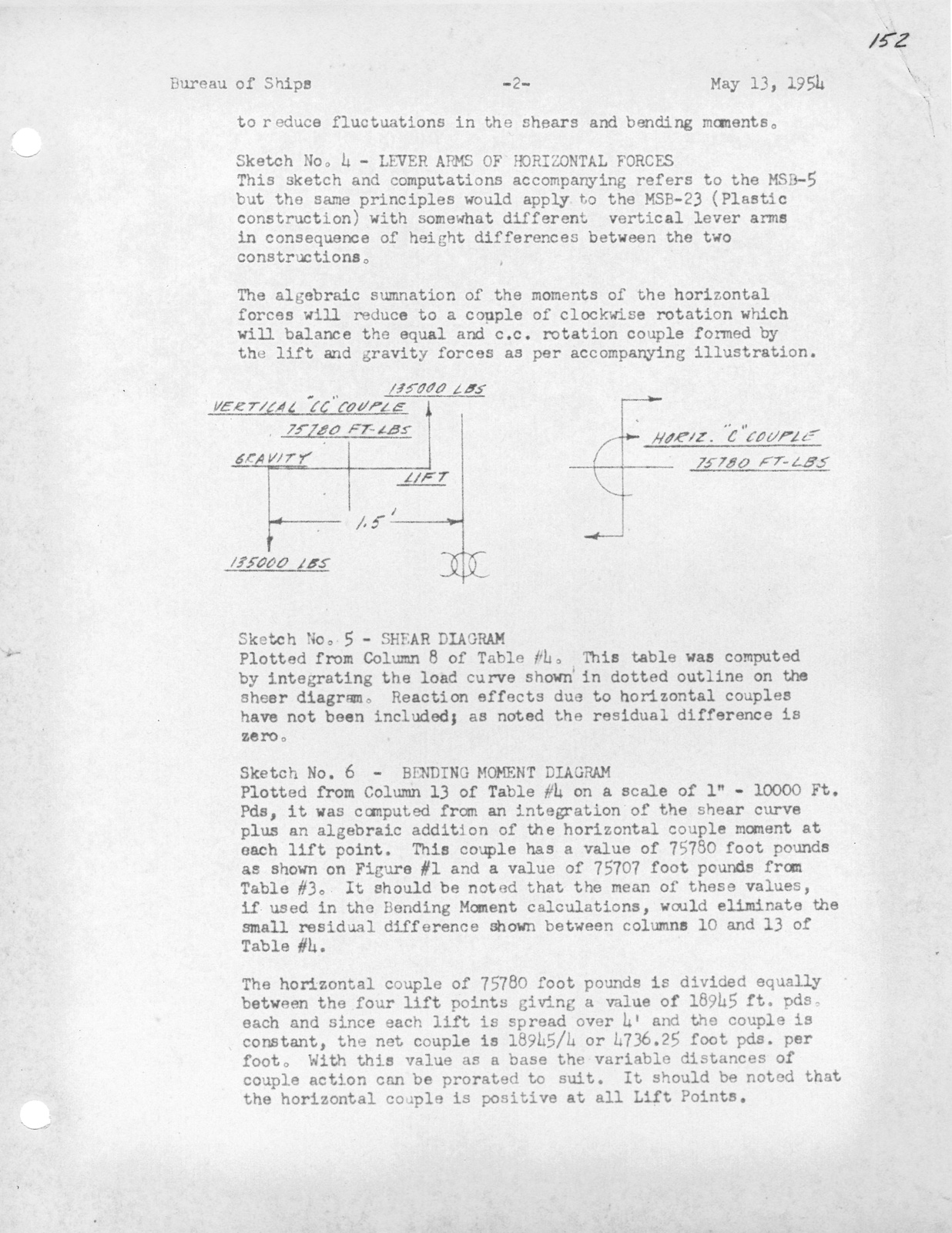

Bureau of Ships Navy Deparment Letter Page 2

Original page: 152

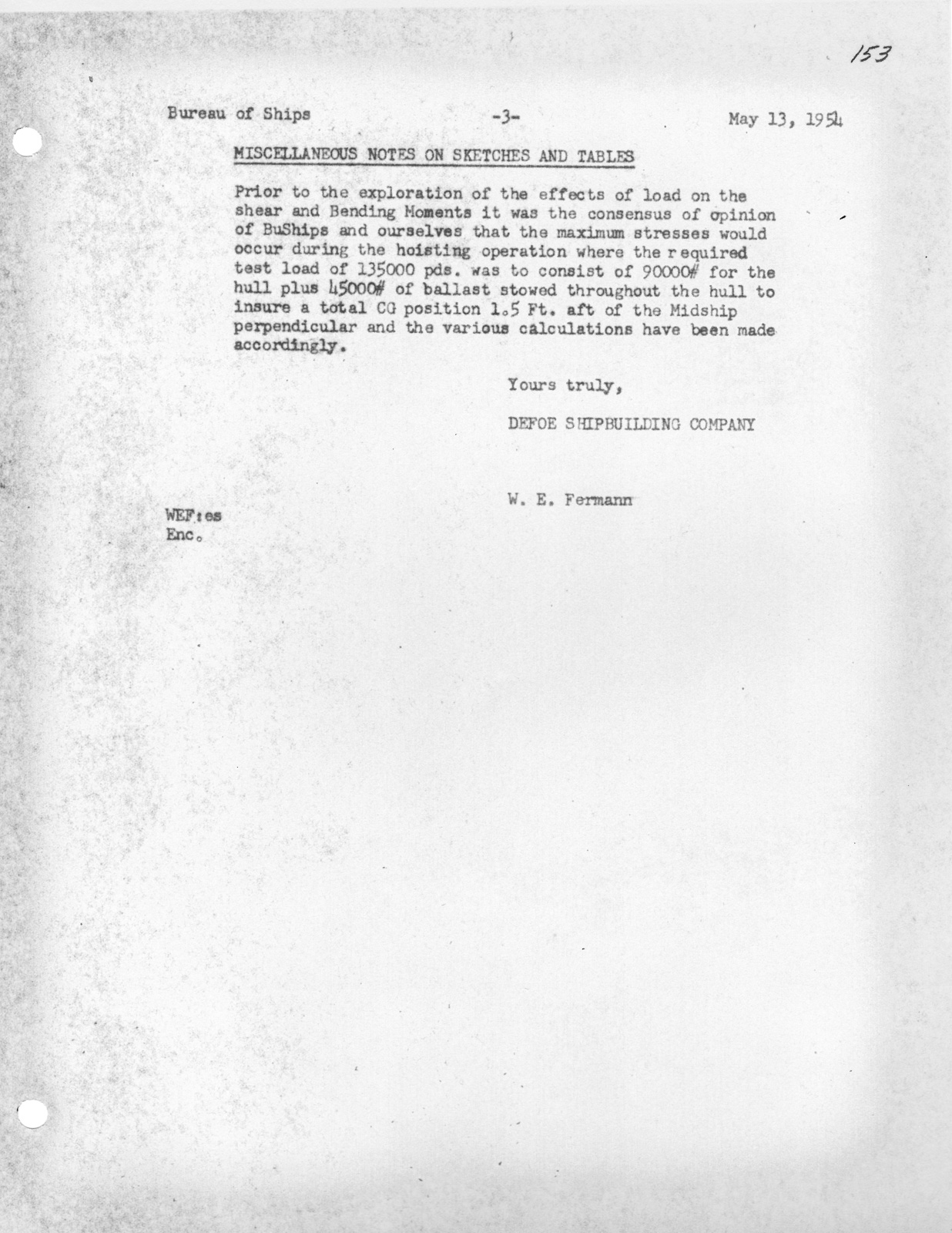

Bureau of Ships Navy Deparment Letter Page 3

Original page: 153

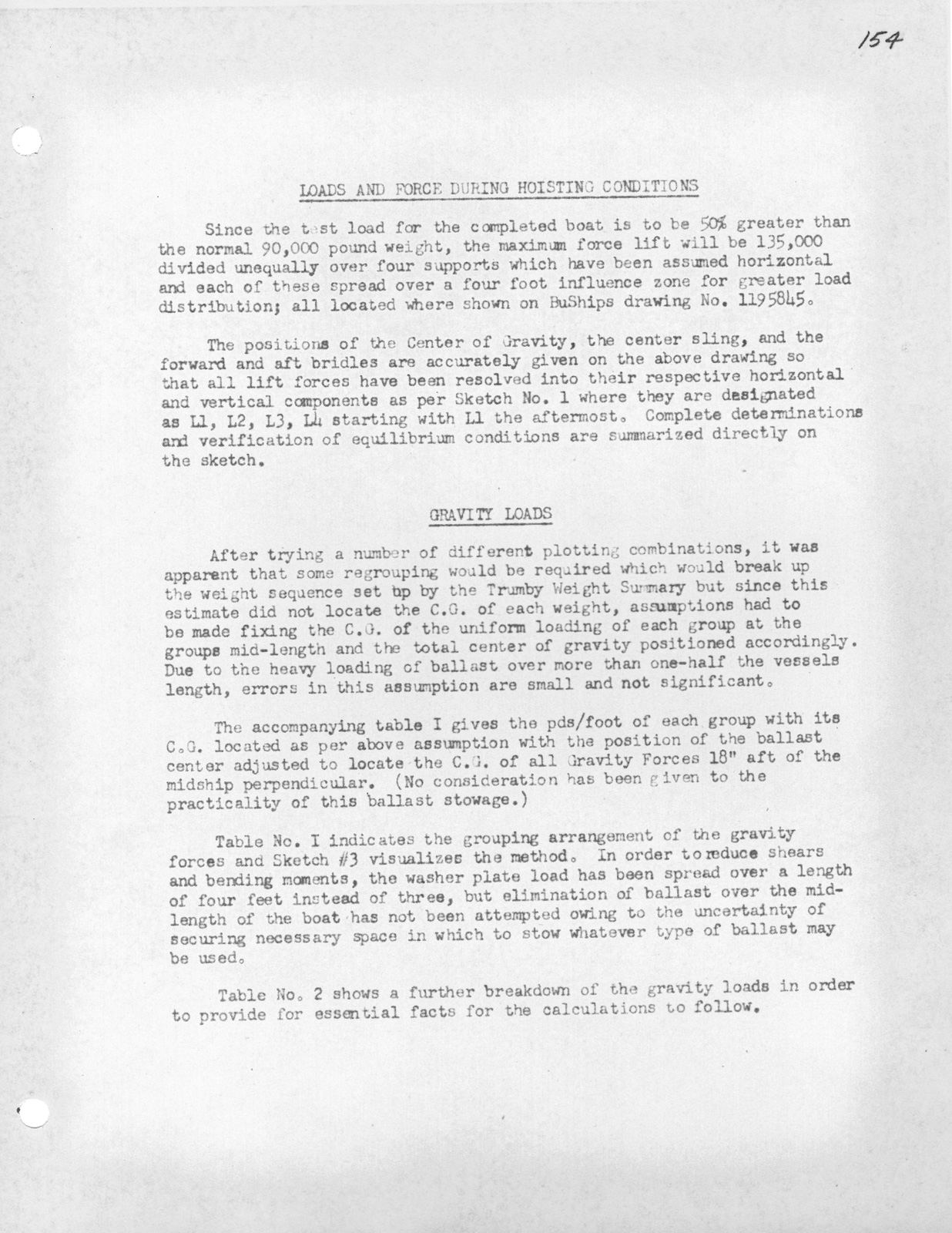

loads and Force During Hoisting Conditions

Original page: 154

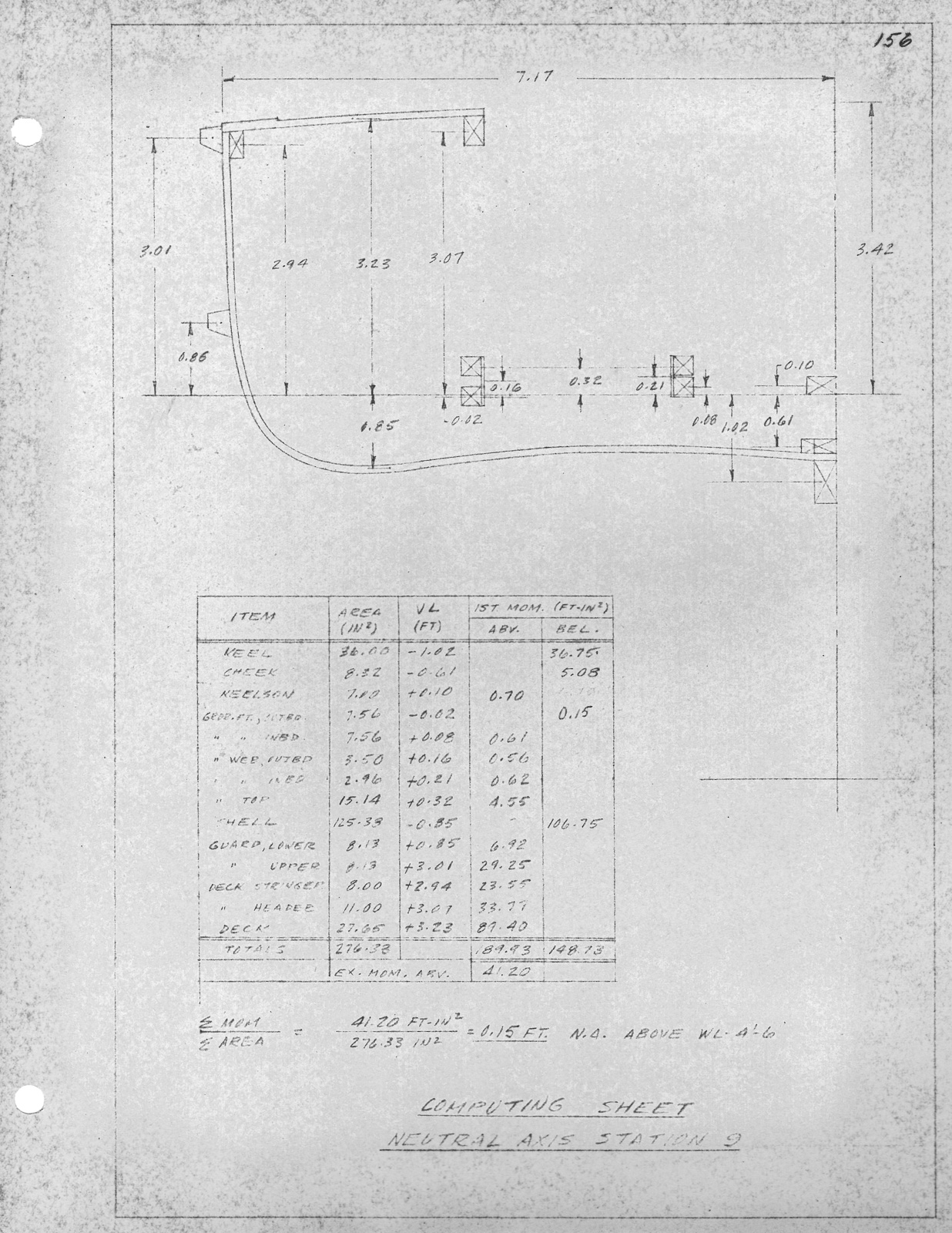

Computing Sheet Neutral Axis Station 9

Original page: 156

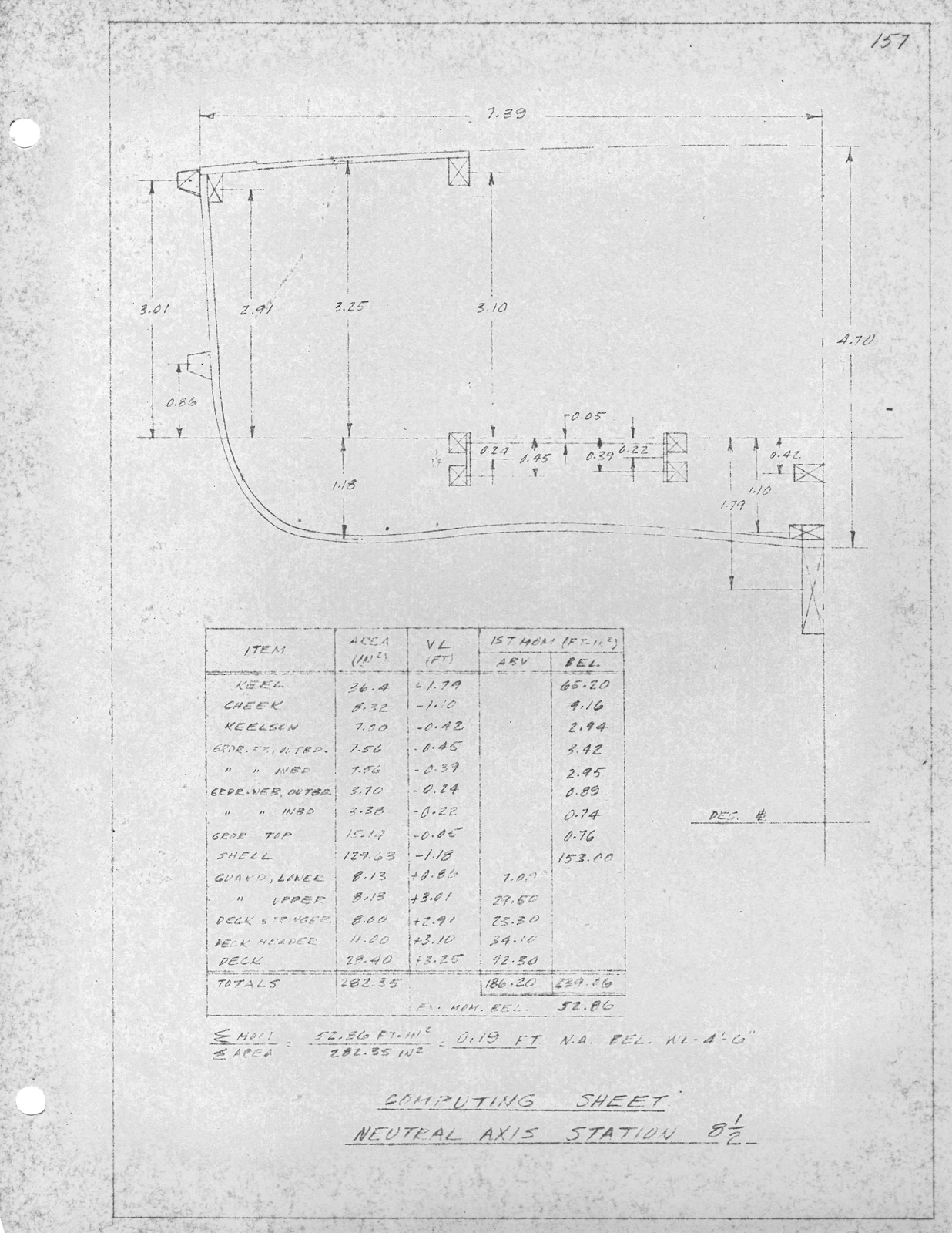

Computing Sheet Neutral Axis Station 8 1/2

Original page: 157

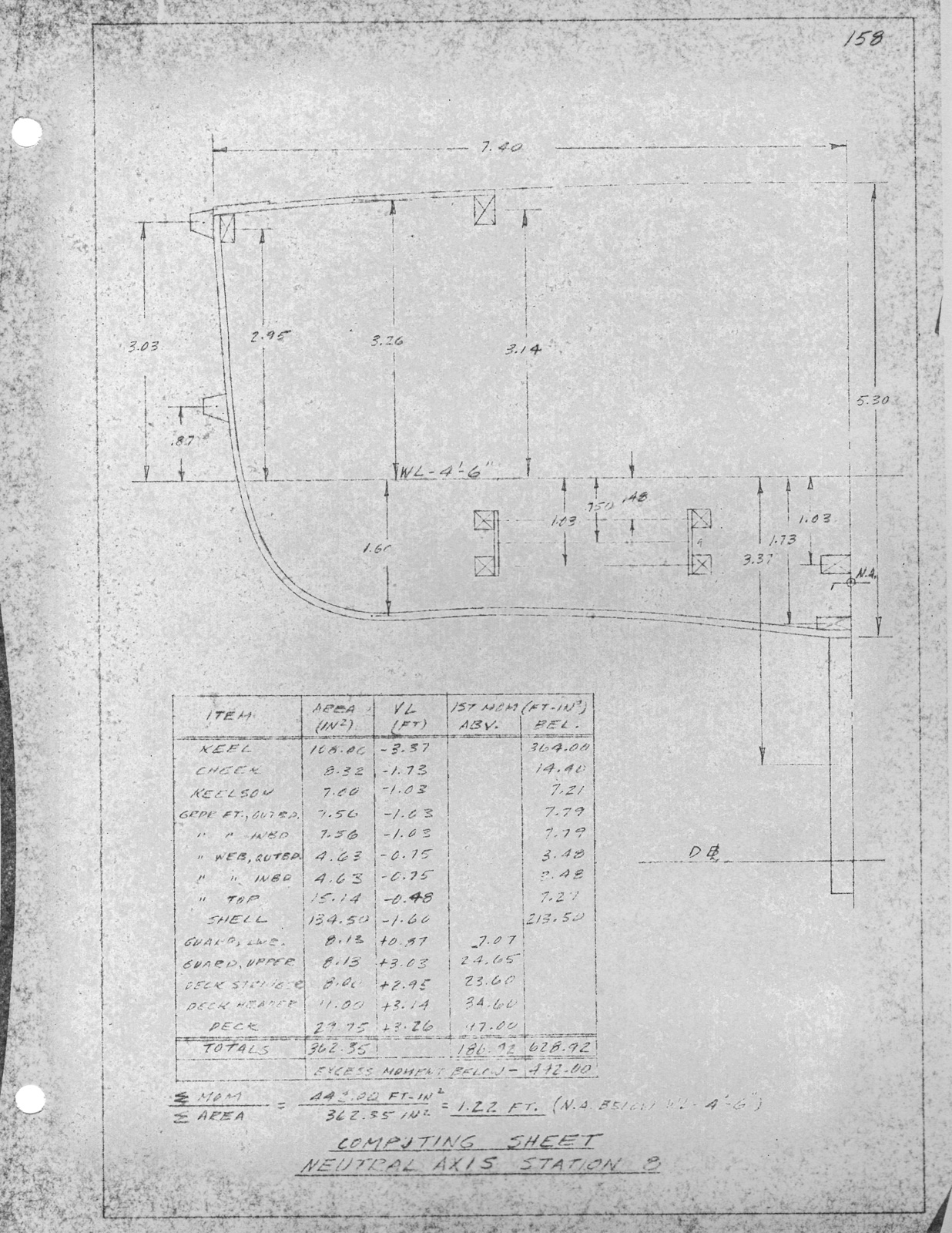

Computing Sheet Neutral Axis Station 8

Original page: 158

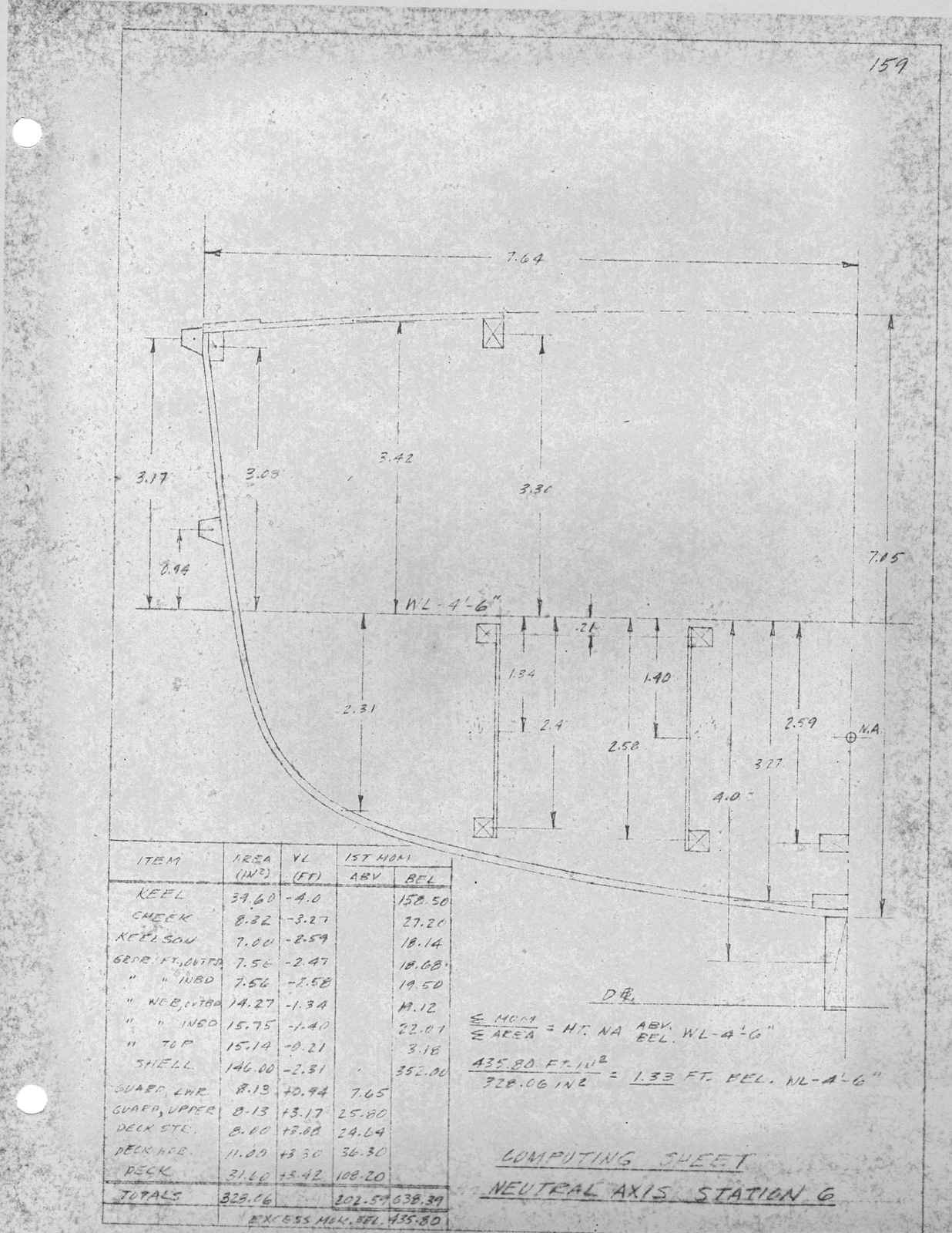

Computing Sheet Neutral Axis Station 6

Original page: 159

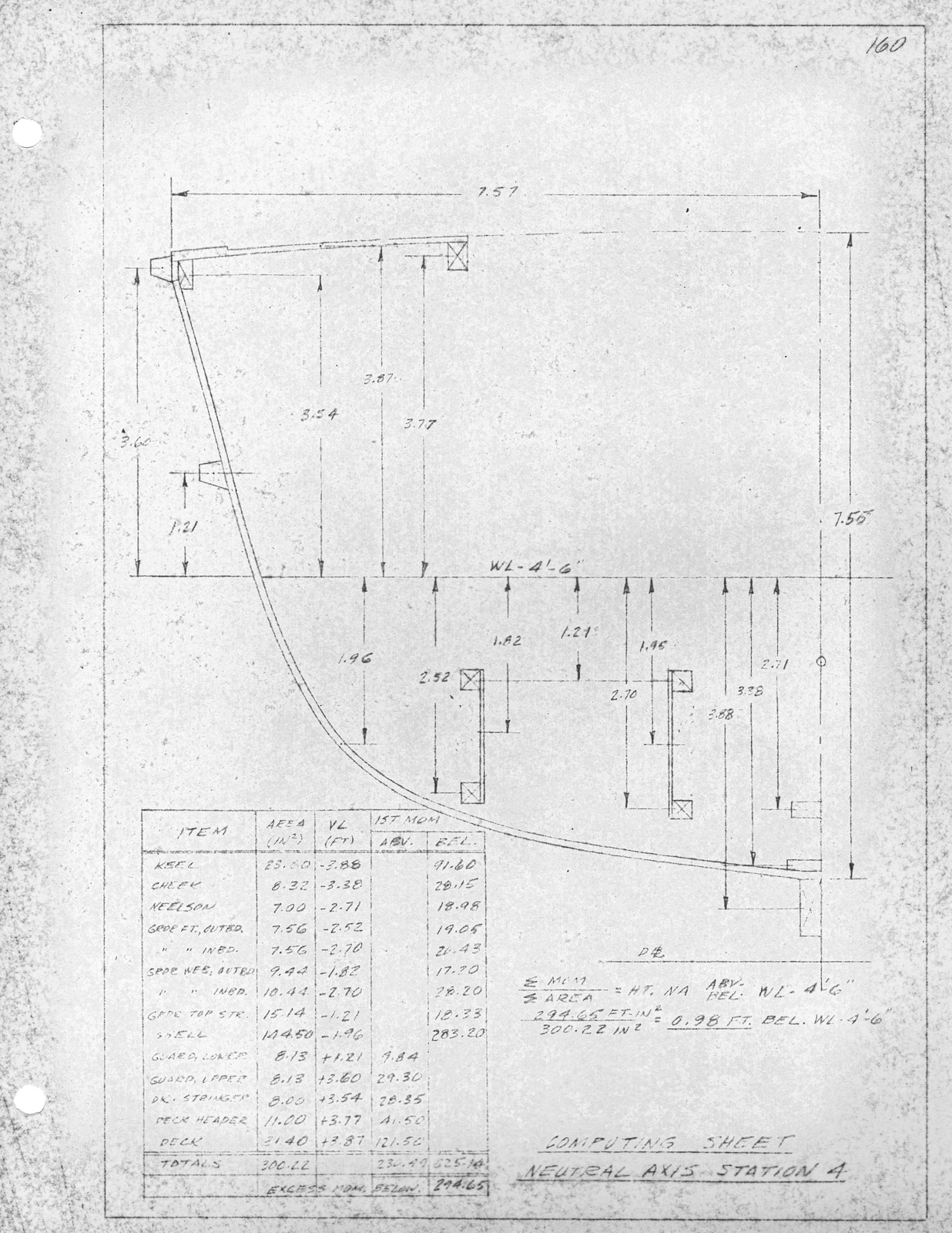

Computing Sheet Neutral Axis Station 4

Original page: 160

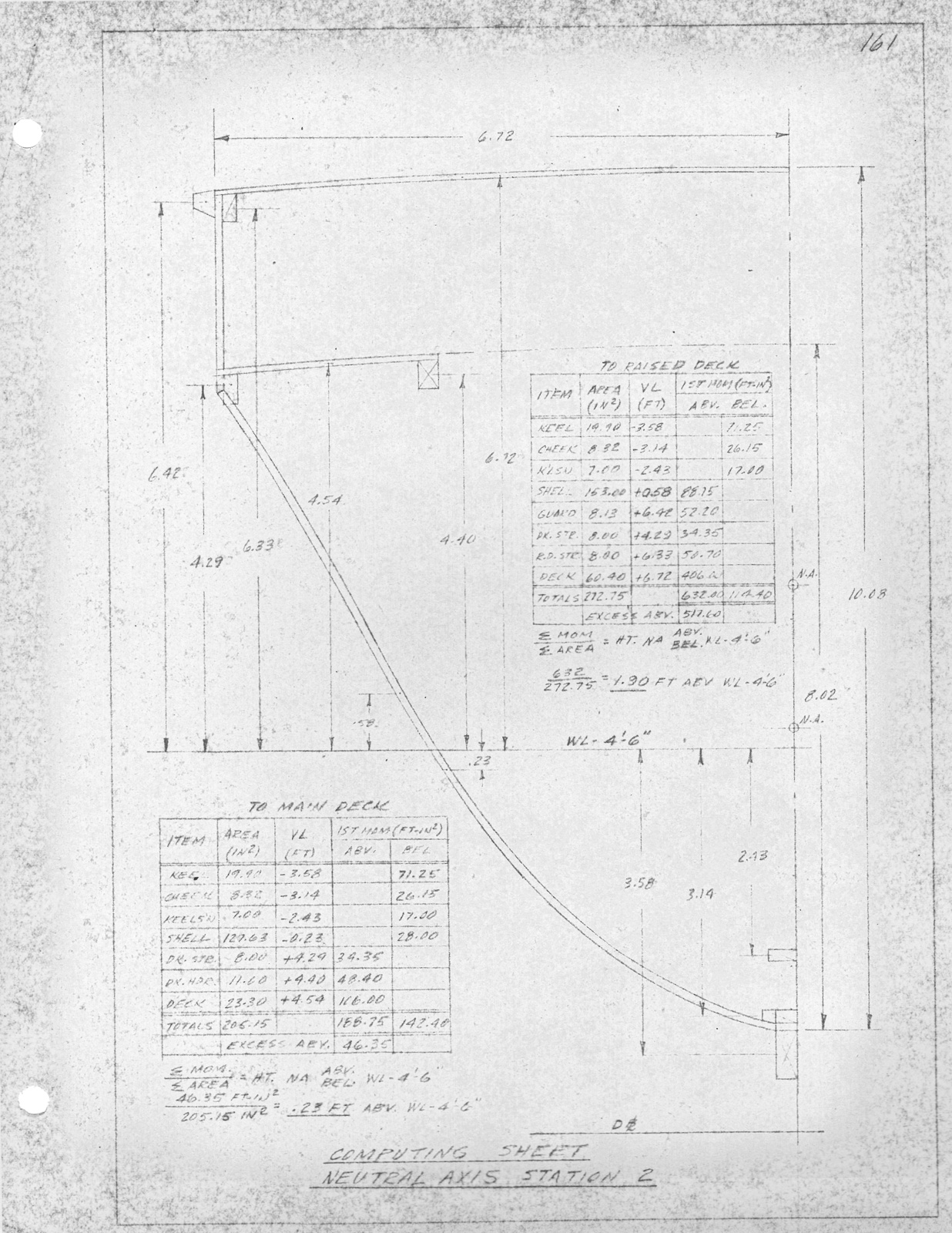

Computing Sheet Neutral Axis Station 2

Original page: 161

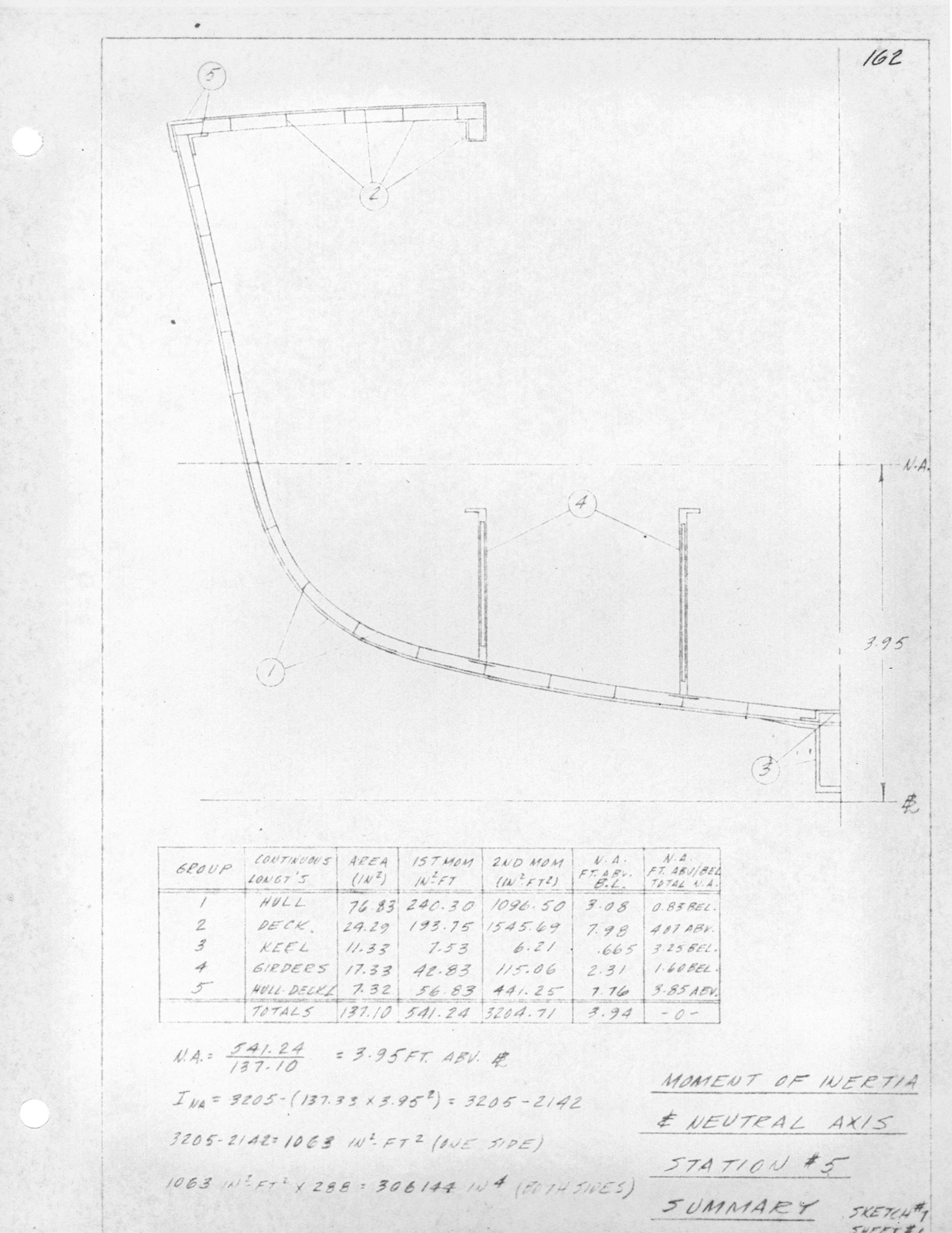

Moment of Inertia & Neutral Axis Station #5

Original page: 162

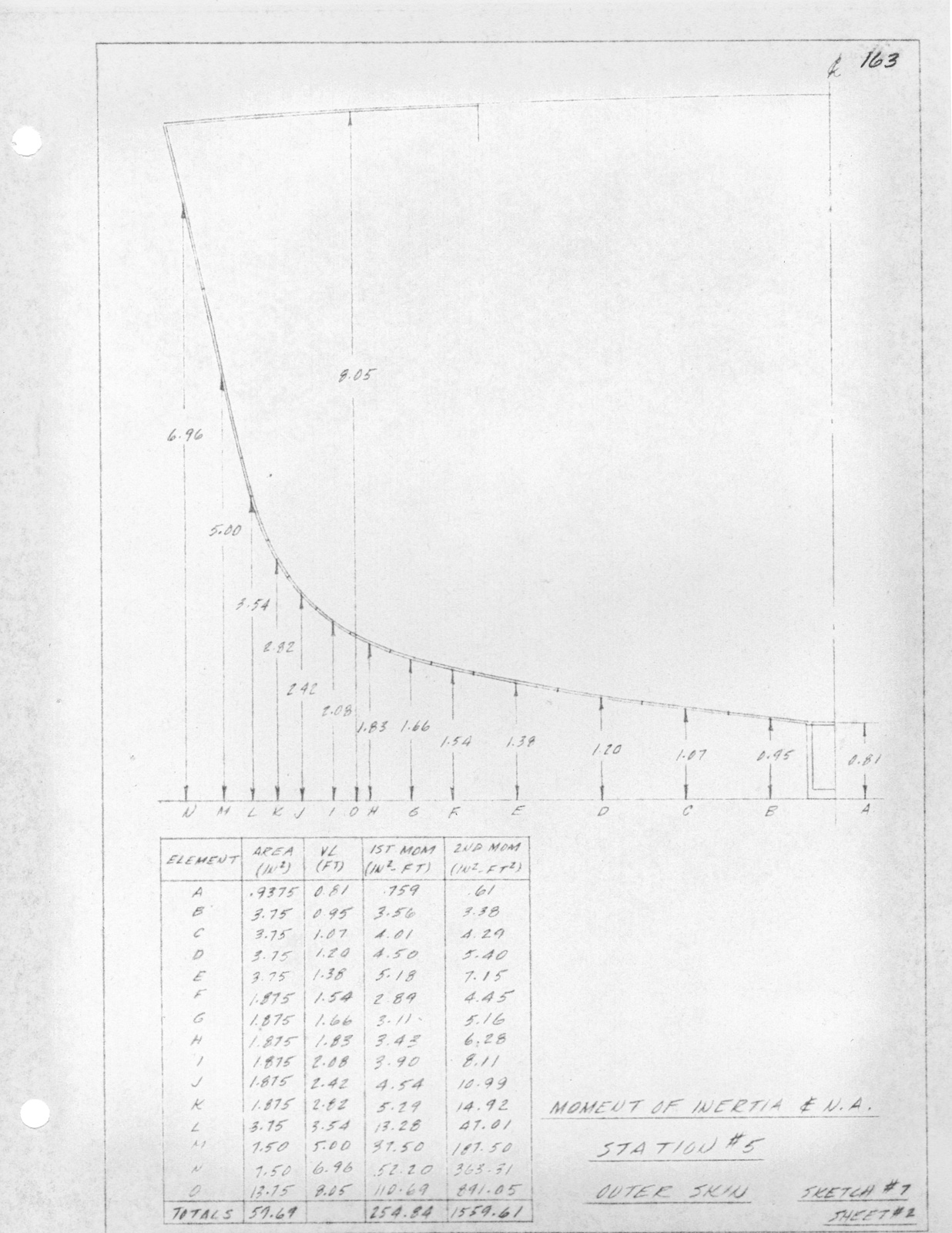

Moment of Inertia & N.A. Station #5 Outer Skin

Original page: 163

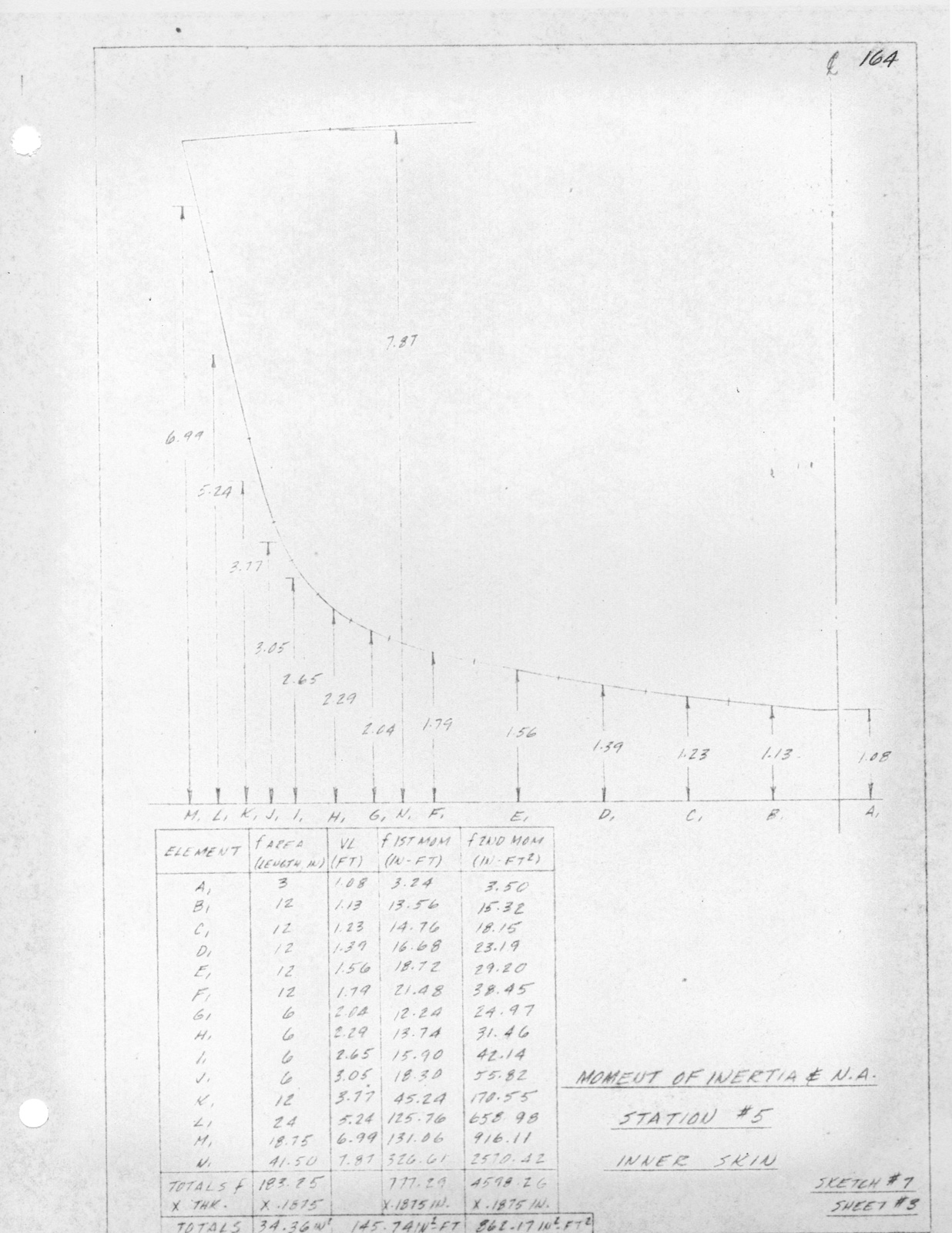

Moment of Inertia & N.A. Station #5 Inner Skin

Original page: 164

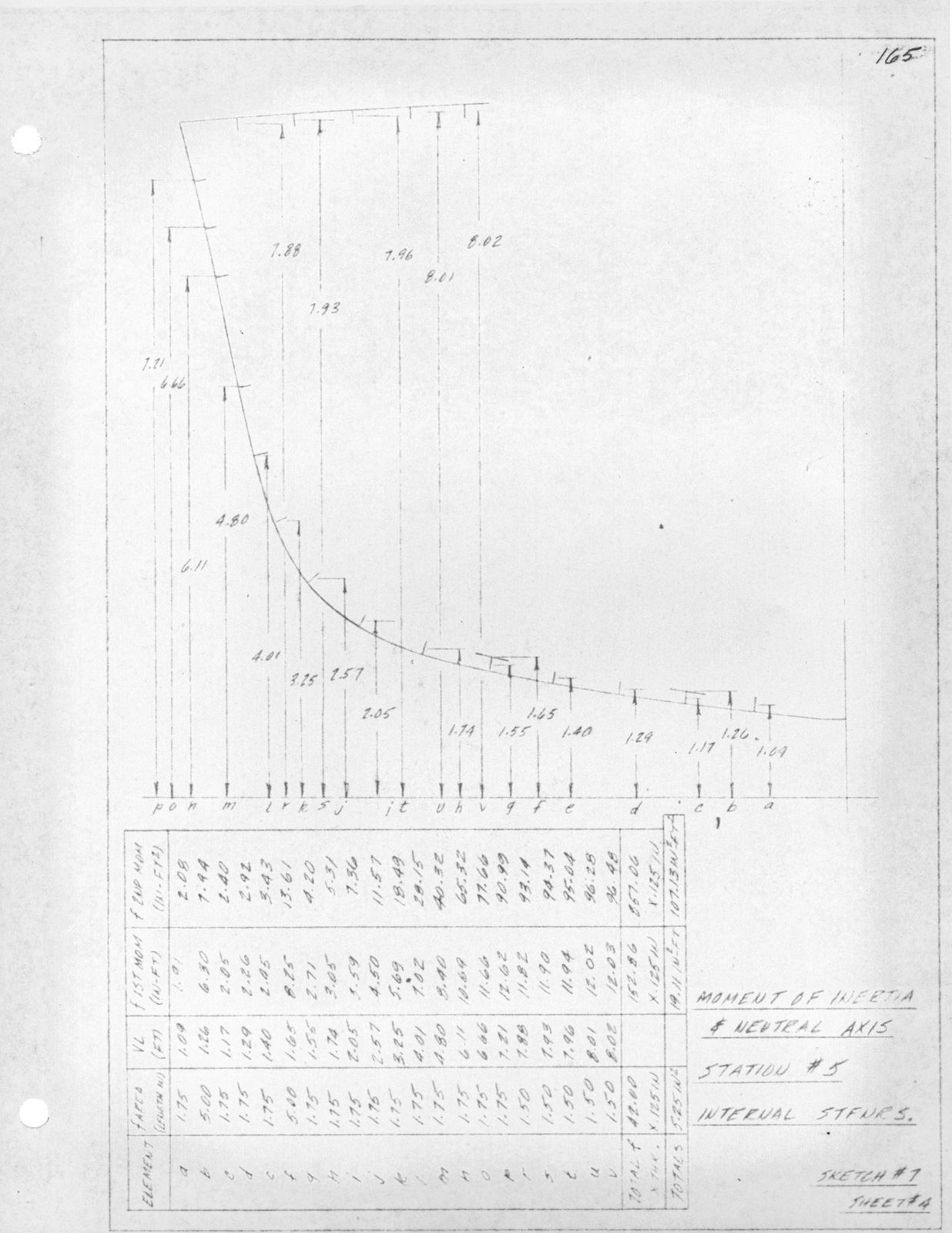

Moment of Inertia & Neutral Axis Station #5 Internal Stfnrs

Original page: 165

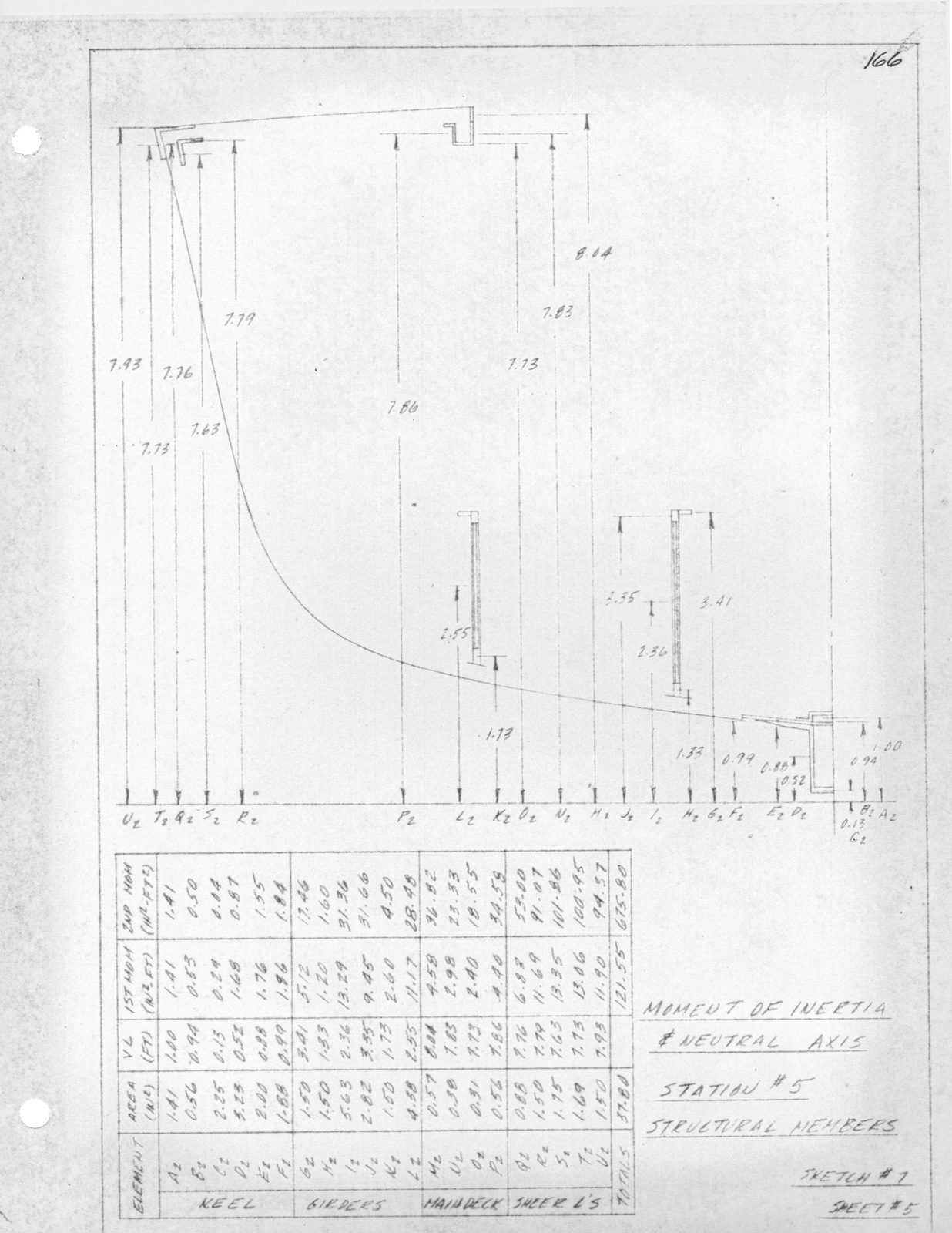

Moment of Inertia & Neutral Axis Station #5 Structural Members

Original page: 166

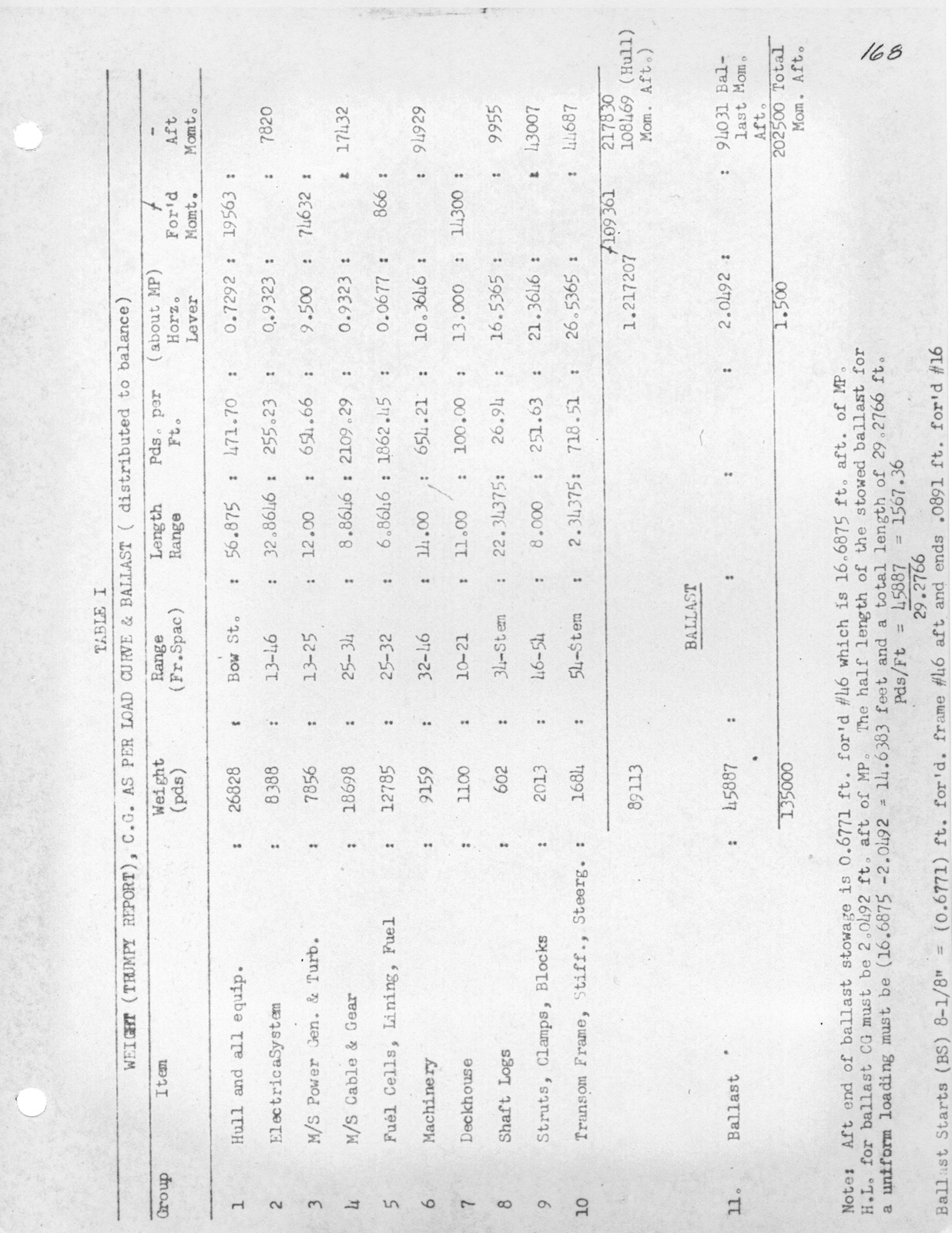

Table 1 Weight C.G. as Per Load Curve & Ballast

Original page: 168

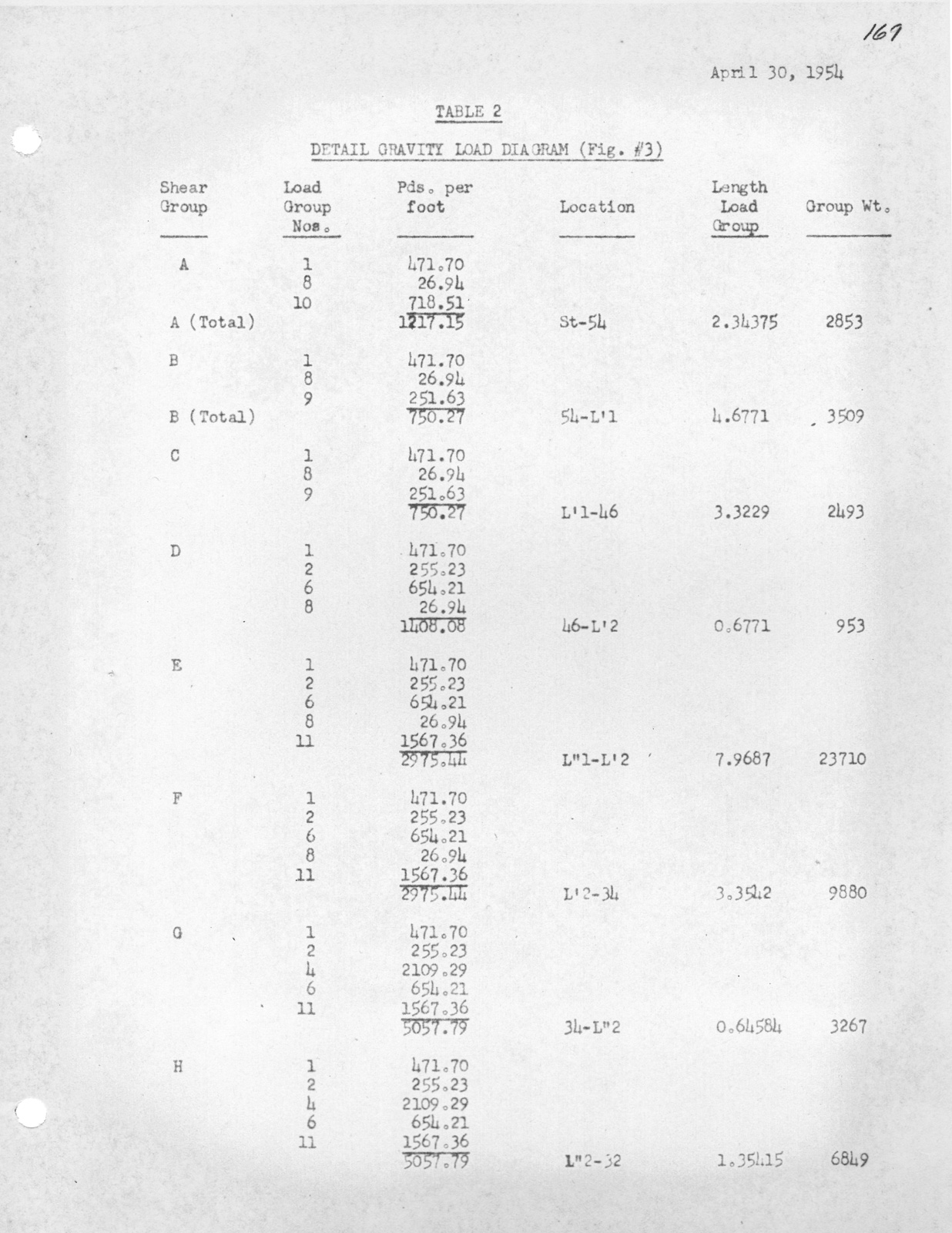

Table 2 Detail Gravity Load Diagram Fig #3

Original page: 169

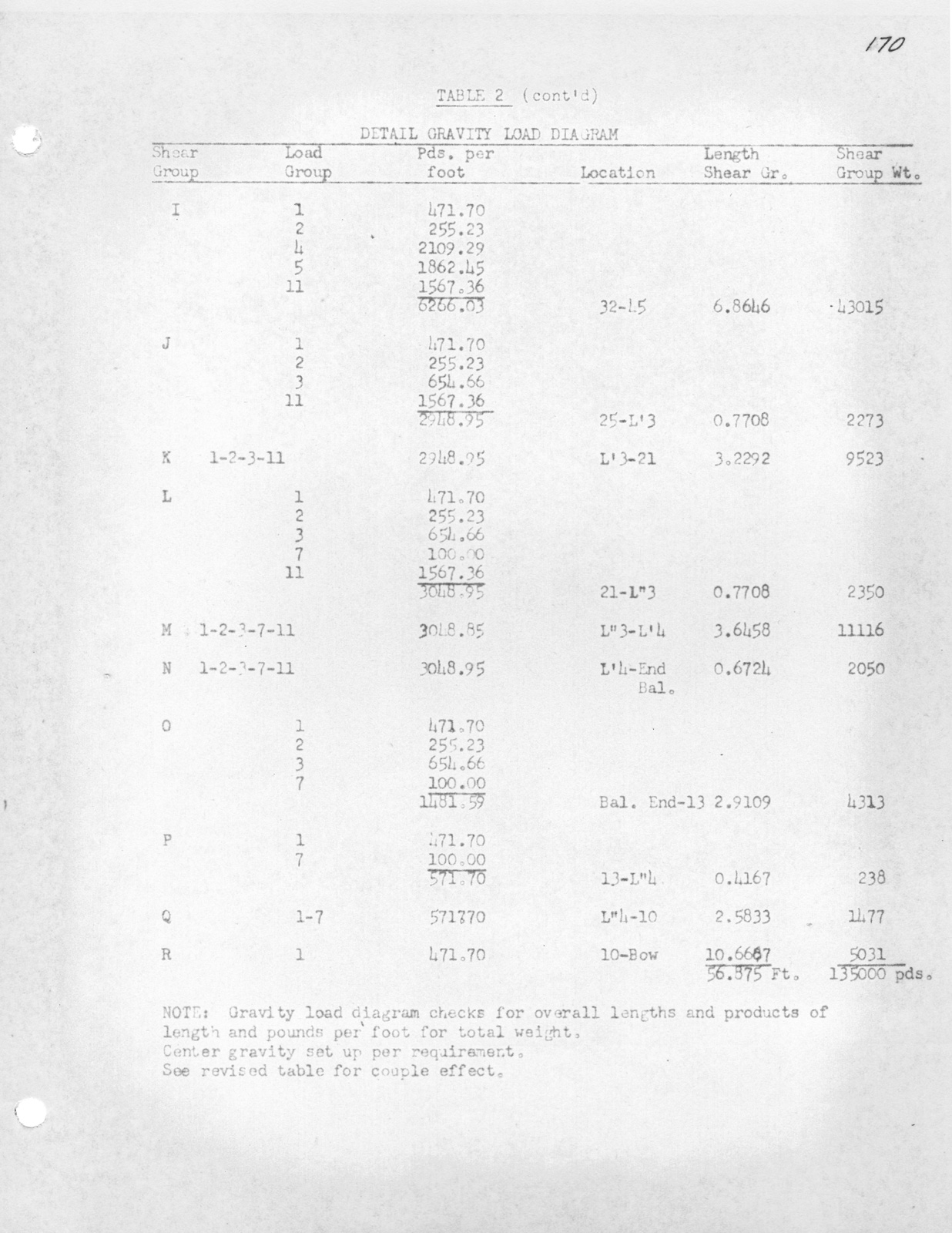

Table 2 (Cont) Detail Gravity Load Diagram

Original page: 170
